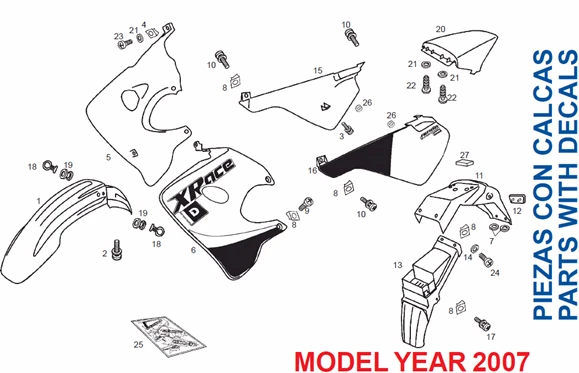

Vehicle Exploded View - DERBI SENDA R 50 SENDA R X-RACE 2007-2009 E2 3ver

	P2R reference	64297
	Maker reference	00H00711025

FRONT MUDGUARD BLACK OEM PIAGGIO GILERA 50 RCR 2006 >-00H00711025

	P2R reference	191025
	Maker reference	00H00714023

00H00714023-GUARD-MUD FRONT RGE

	P2R reference	191026
	Maker reference	00H00714024

00H00714024 - GARDE-BOUE AVANT RGE

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	191027
	Maker reference	86345700W0A

86345700W0A - SCTO.TAPA DL.DR.AZL/BLN.R X-RACE 07

	P2R reference	188447
	Maker reference	86345700W0N

86345700W0N-SCTO. TAPA DL. DR. NGR. SM X-RACE 07

	P2R reference	191028
	Maker reference	86345700W1R

86345700W1R - SCTO.TAPA DL.DR.ROJ/BLN.R X-RACE 07

	P2R reference	191029
	Maker reference	86345800W0A

86345800W0A - SCTO.TAPA DL.IZ.AZL/BLN.R X-RACE 07

	P2R reference	188449
	Maker reference	86345800W0N

86345800W0N - SCTO.TAPA DL.IZ.NGR.SM X-RACE 07

	P2R reference	191030
	Maker reference	86345800W1R

86345800W1R - SCTO.TAPA DL.IZ.ROJ/BLN.R X-RACE 07

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	191031
	Maker reference	86345910W0B5

86345910W0B5-R-SCTO. TAPA LAT. DR. R X-RACE 07

	P2R reference	191032
	Maker reference	86346010W0B5

86346010W0B5 - R-SCTO.TAPA LAT.IZ.R X-RACE 07

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	64285
	Maker reference	00H00608164

REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010 BLACK-00H00608164

	P2R reference	188726
	Maker reference	00H00618161

00H00618161 - COUVRE-SELLE

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	191033
	Maker reference	86353700W0A

86353700W0A - R-CTO.KIT CALCAS R X-RACE AZL.ARG.07

	P2R reference	191034
	Maker reference	86353700W1R

86353700W1R - R-CTO.KIT CALCAS R X-RACE ROJ.APO.07

	P2R reference	191035
	Maker reference	86360700W0N

86360700W0N - R-CTO.KIT CALCAS R X-RACE NEGRA 07

	P2R reference	188284
	Maker reference	00H00501761

00H00501761-RUBBER MOUNT

	P2R reference	188419
	Maker reference	00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM
