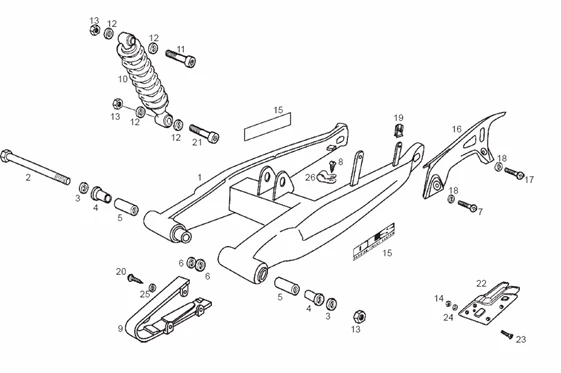

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race E2 2004 (EMEA)

	P2R reference	64234
	Maker reference	00H003089715

00H003089715 - BRAS OSCILLANT

	P2R reference	64484
	Maker reference	00H013042025

WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025

	P2R reference	68489
	Maker reference	709037

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	68489
	Maker reference	000031123225

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	63630
	Maker reference	000025032305

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017APRILIA 50 SX, RX 2006 > 2017-00002503230

	P2R reference	64217
	Maker reference	00H00301401

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401

	P2R reference	63879
	Maker reference	00D01300192

WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192

	P2R reference	66547
	Maker reference	478171

SCREW BTR (6X100) OEM PIAGGIO COMMON A LA RANGE-478171

	P2R reference	64620
	Maker reference	00H01803331

PATIN DE CHAIN 50 A BOX OEM PIAGGIO GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX-RX 2006 >-00H01803331

	P2R reference	64558
	Maker reference	00H01508191

REAR SHOCK ABSORBER OEM PIAGGIO 50 GILERA RCR 2006-00H01508191

	P2R reference	64230
	Maker reference	00H00303892

SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892

	P2R reference	63633
	Maker reference	000031154225

WASHER PLATE (12X21X1) OEM PIAGGIO COMMON A LA RANGE-00003115422

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	188471
	Maker reference	00H00309331

00H00309331 - ADHESIF

	P2R reference	64557
	Maker reference	00H01508181

COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	64216
	Maker reference	00H00300912

SCREW TH (12X45) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00300912

	P2R reference	187772
	Maker reference	00H01502871

00H01502871 - GUIDE CHAINE

	P2R reference	63708
	Maker reference	000130612005

00013061200 - VIS T. CREUSE

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454
