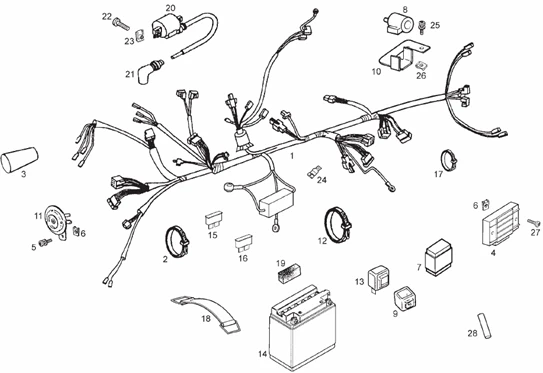

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009

	P2R reference	190448
	Maker reference	864840

864840-CIRCUIT ELECTRIC

	P2R reference	194631
	Maker reference	00H01051301

00H01051301 - CTO.INSTALAC.SD 125CC ZONGSH.

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	194632
	Maker reference	862905

862905 - REGULADOR

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	190450
	Maker reference	862906

862906-CENTRE

	P2R reference	190451
	Maker reference	862908

862908-RELAIS

	P2R reference	70898
	Maker reference	942577

942577-BRACKET RELAIS

	P2R reference	190452
	Maker reference	00H02300361

00H02300361 - SUPPORT

	P2R reference	189106
	Maker reference	864458

864458 - SCTO.CLAXON 12V TER125

	P2R reference	146215
	Maker reference	863339

863339-HORN

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	64011
	Maker reference	00G01700401

00G01700401-CENTRAL CLIGNOTANTE

	P2R reference	136948
	Maker reference	1R000317

BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317

	P2R reference	67305
	Maker reference	584662

BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662

	P2R reference	64373
	Maker reference	00H01001911

00H01001911-FUSIBLE

	P2R reference	64377
	Maker reference	00H01002911

00H01002911 - FUSIBLE

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64621
	Maker reference	00H01803471

00H01803471-BUTE POSITIONNEUR BATTERY

	P2R reference	190453
	Maker reference	862907

862907 - BOBINE

	P2R reference	190453
	Maker reference	862907

862907 - BOBINE

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	190454
	Maker reference	863003

863003-DIODE

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63705
	Maker reference	000121620005

00012162000-BOLT HEAD HEX. 5M80X15

	P2R reference	70061
	Maker reference	864587

864587 - PROTECTOR GUIA CABLES MUL125
