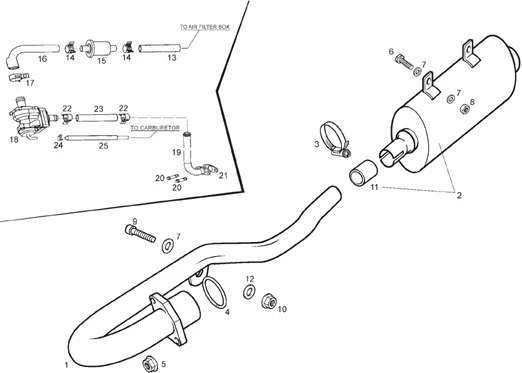

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009

Tables : 13B TUYAU D’ÉCHAPPEMENT

	P2R reference	190461
	Maker reference	864869

864869 - COLLECTEUR ECHAP.CENTRAL

More information

Quantity required : 1

	P2R reference	190462
	Maker reference	865120

865120 - SCTO.SORDINA SD BJ125 08

More information

Quantity required : 1

	P2R reference	64793
	Maker reference	00H03405061

CLAMP EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 > 2016/RX, SX 2018 > 2020-00H03405061

More information

Quantity required : 1

	P2R reference	189892
	Maker reference	967299

967299-GASKET

More information

Quantity required : 1

	P2R reference
	Maker reference	000260060025

	P2R reference	71830
	Maker reference	AP8150170

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

More information

Quantity required : 1

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

More information

Quantity required : 1

	P2R reference	63591
	Maker reference	000000230805

00000023080-NUT INDESSERABLE 8M125

More information

Quantity required : 1

	P2R reference	71829
	Maker reference	AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 1

	P2R reference	63720
	Maker reference	000260080015

NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-00026008001

More information

Quantity required : 1

	P2R reference	64795
	Maker reference	00H03406321

GASKET/BUSH EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 >, SX 2018 >, RX 2018 > 00H03406321

More information

Quantity required : 1

	P2R reference	63946
	Maker reference	00G00803101

WASHER PLATE (8. 6X20X2. 5) OEM PIAGGIO COMMON A LA RANGE-00G00803101

More information

Quantity required : 1

	P2R reference	190324
	Maker reference	862665

862665 - COLLIER

More information

Quantity required : 1
