Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 4T E2 2004-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

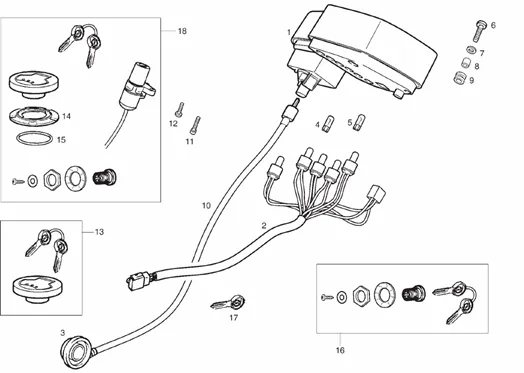

Tables : 12 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1069/Senda_R_125_4T_E2_2004-2007_(EMEA)_12.png)
1 |
00H01639521 - BOITIER TABLEAU BORD (M/H) More informationQuantity required : 1 |
||||||
|
1 |
00H01638521 - BOITIER TABLEAU BORD (KM/H) More informationQuantity required : 1 |
||||||
|
2 |
00H04321651 - INSTALLATION ÉLECTRIQUE More informationQuantity required : 1 |
||||||
|
3 |
00H01613051 - RENVOI DE ROUE More informationQuantity required : 1 |
||||||
|
4 |
00G01602581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
|
5 |
00G01601581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
6 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
7 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
8 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
9 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/7/4/4/img/189744.jpg)
10 |
00H01620021 - ENSEMB.CABLE-GAINE COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
11 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
12 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
||||||
|
13 |
00H00400131-ENS. CAP RESERV. FUEL V. B More informationQuantity required : 1 |
||||||
|
14 |
00H00400161 - FLASQUE More informationQuantity required : 1 |
||||||
|
15 |
00H00400151-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
16 |
ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/9/img/63909.jpg)
17 |
EBAUCHE DE CLE OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA 2003 >-00F01810411 More informationQuantity required : 1 |
||||||
|
18 |
00H05909251 - ENS.KIT SERRURES More informationQuantity required : 1 |
