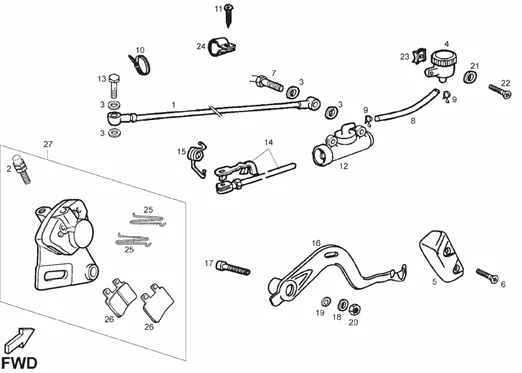

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 4T E2 2004-2007 (EMEA)

	P2R reference	189738
	Maker reference	00H01112081

00H01112081 - TIGE DE FREIN

	P2R reference	70045
	Maker reference	864123

SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	63873
	Maker reference	00D01100201

TANK/BOCAL OF BRAKE REAR OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2006, RS 2006 > 2010-00D01100201

	P2R reference	64399
	Maker reference	00H01101731

PROTECTEUR CONTROL OF BRAKE REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2010/DERBI SENDA 2000 > 2010-00H01101731

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	64372
	Maker reference	00H01001701

INTERRUPTEUR/CONTACTEUR STOP REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H01001701

	P2R reference	189739
	Maker reference	00H01102211

00H01102211 - FLEXIBLE DE FREIN ARRIERE

	P2R reference	64809
	Maker reference	00H03700131

CLAMP HOSE (8X10) BOCAL OF BRAKE OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 </APRILIA SX, RX, RS-00H03700131

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	189740
	Maker reference	00H01104181

00H01104181-ENSEMBLE CONTROL BRAKE ARRIER

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	64404
	Maker reference	00H01103611

ROD OF BRAKE REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H01103611

	P2R reference	151763
	Maker reference	2B005020

SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020

	P2R reference	69950
	Maker reference	86239R

REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R

	P2R reference	64392
	Maker reference	00H01100172

SCREW PEDAL OF BRAKE REAR OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H01100172

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	63655
	Maker reference	000055275405

SPACER DE PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00005527540

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	64933
	Maker reference	00H04701171

SPRING DE BRAKE PAD REAR OEM DERBI 50-125 SENDA 2004 > 2008-00H04701171

	P2R reference	187874
	Maker reference	00H01304931

00H01304931-ENS. BRAKE PAD

	P2R reference	189741
	Maker reference	00H01106581

00H01106581 - ETRIER FREIN ARR.
