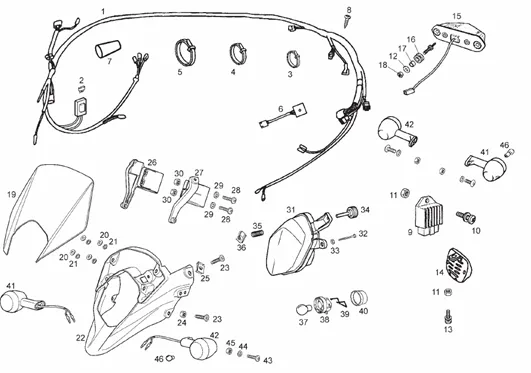

Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO 2008 E2 2ver

	P2R reference	69835
	Maker reference	86107R

WIRING HARNESS OEM DERBI 50 SENDA DRD RACING 2 E2 2005 > 2008/APRILIA 50 SX, RX 2006 > 2010-86107R

	P2R reference	64373
	Maker reference	00H01001911

00H01001911-FUSIBLE

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	64997
	Maker reference	00H05700481

CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	63685
	Maker reference	000110613005

00011061300-SCREW

	P2R reference	70888
	Maker reference	898891

REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	64382
	Maker reference	00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311

	P2R reference	64386
	Maker reference	00H01009321

LAMP REAR OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-00H01009321

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	70048
	Maker reference	86420600W0B

HEAD OF FORK/BULLE FRONT WHITE OEM DERBI 50 SENDA 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017-86420600W0B

	P2R reference	190601
	Maker reference	86420600WY45

86420600WY45-R-CARCASA FARO DLNT. AMA. LIM. EVO 50CC

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	190602
	Maker reference	864855

864855-SOPTE. CARCASA FARO EVO 50CC

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

	P2R reference	214483
	Maker reference	2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	151688
	Maker reference	2B004524

BRACKET BULLE FRONT LEFT (FORK INVERSEE) OEM PIAGGIO GILERA 50 SMT DRIFTING 2018 >/APRILIA 50-125 RX, SX 2018 >-2B004524

	P2R reference	151687
	Maker reference	2B004523

BRACKET BULLE FRONT RIGHT (FORK INVERSEE) OEM PIAGGIO GILERA 50 SMT DRIFTING 2018 >/APRILIA 50-125 RX, SX 2018 >-2B004523

	P2R reference	153427
	Maker reference	AP8152060

AP8152060 - VIS

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	70111
	Maker reference	865385

LAMP UNIT/HEADLAMP/HEADLAMP OEM DERBI 50 SENDA 2005 > 20017/GILERA 50 SMT, RCR 2011 > 2017-865385

	P2R reference	63678
	Maker reference	000110325015

SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501

	P2R reference
	Maker reference	031040

VIS

	P2R reference	64378
	Maker reference	00H01003101

SCREW REGLAGE LAMP UNIT OEM DERBI 50 SENDA 2008 > 2017/GILERA 50 SMT, RCR 2011 > 2017-00H01003101

	P2R reference	187854
	Maker reference	00G02301501

00G02301501-SPRING HEADLAMP FRONT

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	63641
	Maker reference	000037101105

DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110

	P2R reference	63642
	Maker reference	000037101205

SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120

	P2R reference	65003
	Maker reference	00H05703141

PROTECTOR AMPOULE DE HEADLAMP OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00H05703141

	P2R reference	69986
	Maker reference	863008

FRONT RIGHT INDICATOR OU REAR LEFT OEM DERBI 50 SENDA DRD 2005 > 2017/GILERA 50 SMT, RCR 2011 >-863008

	P2R reference	69987
	Maker reference	863009

FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009

	P2R reference	72330
	Maker reference	AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489
