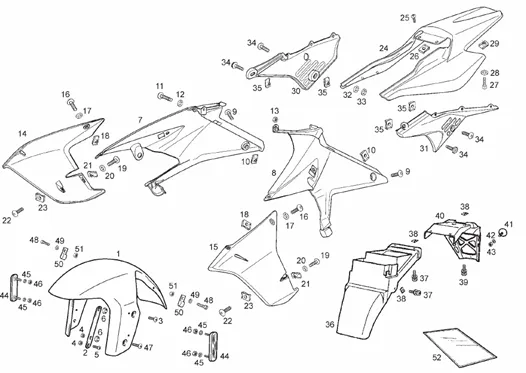

Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO 2008 E2 2ver

	P2R reference	139407
	Maker reference	20H00720021

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 GPR/APRILIA 50 RS -20H00720021

	P2R reference	70311
	Maker reference	867258

BRACKET/BRACKET DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 50-125 RS, TUONO-867258

	P2R reference	190583
	Maker reference	861178

861178-TOR. M6X16 INOX C/ABOMBADA MULHACEN

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63665
	Maker reference	000080620005

00008062000-BOLT BOMBEE ALLEN 6M100X20

	P2R reference	190584
	Maker reference	865399

865399-CASQ. SEPARAD. GUARDAB. DLNT. DRD EVO

	P2R reference	190585
	Maker reference	864858

864858-TAPA DPSTO. DR. EVO 50CC

	P2R reference	190586
	Maker reference	864859

864859 - TAPA DPSTO.IZ.EVO 50CC

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	63725
	Maker reference	000311050005

00031105000-WASHER PLATE M5 DIN125

	P2R reference	190587
	Maker reference	R864860

R864860-COVER FRONT

	P2R reference	190588
	Maker reference	86486000WY45

86486000WY45-R-TAPA LAT. ANT. DR. AMA. LIM. DRD EVO 50CC

	P2R reference	190589
	Maker reference	R864861

R864861-COVER FRONT

	P2R reference	190590
	Maker reference	86486100WY45

86486100WY45-R-TAPA LAT. ANT. IZ. AMA. LIM. DRD EVO 50CC

	P2R reference	190591
	Maker reference	864252

864252 - TOR.C/RED ALLEN 5MX12 ISO7380 INOX

	P2R reference	190592
	Maker reference	865396

865396 - ARAND.Ï5XÏ9 NYLON NATURAL

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	190591
	Maker reference	864252

864252 - TOR.C/RED ALLEN 5MX12 ISO7380 INOX

	P2R reference	190592
	Maker reference	865396

865396 - ARAND.Ï5XÏ9 NYLON NATURAL

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	190593
	Maker reference	R864864

R864864 - COUVERCLE

	P2R reference	190594
	Maker reference	86486400WY45

86486400WY45 - COUVERCLE

	P2R reference	71933
	Maker reference	AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	63725
	Maker reference	000311050005

00031105000-WASHER PLATE M5 DIN125

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	190595
	Maker reference	864862

864862 - TAPA LATRAL.POST.DR.EVO 50CC

	P2R reference	190596
	Maker reference	864863

864863 - TAPA LATRAL.POST.IZ.EVO 50CC

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	64308
	Maker reference	00H00718341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2004 > 2017/GILERA 50 SMT, RCR 2011 > 2017-00H00718341

	P2R reference	72325
	Maker reference	AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

	P2R reference
	Maker reference	031040

VIS

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	71569
	Maker reference	AP8124719

CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	190490
	Maker reference	865398

865398-TOR. C/ALLEN M6X100X30 INOX

	P2R reference	63661
	Maker reference	000080512005

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-00008051200

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	190597
	Maker reference	865483

865483-R-JUEGO CALCAS DRD EVO AMARILLO

	P2R reference	190598
	Maker reference	865484

865484 - R-JUEGO CALCAS DRD EVO NEGRA
