Vehicle Exploded View - APRILIA SCARABEO DITECH 50 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

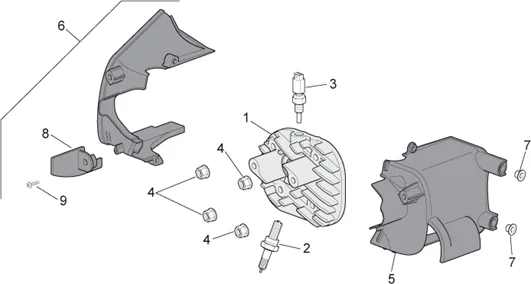

Moteur : 29.33 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/586/Scarabeo_50_Ditech_2001-2004_29.33.PNG)
1 |
AP3BBA000550 - CULASSE More informationQuantity required : 1 |
||||||
|
2 |
AP2BEN000276 - BOUGIE NGK CPR8E More informationQuantity required : 1 |
||||||
|
3 |
AP2BAA000670-THERMISTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
4 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 4 |
||||||
|
5 |
Couvercle cylindre droite; |
||||||
|
6 |
Couvercle cylindre gauche; |
||||||
|
7 |
AP3UAN000061 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
8 |
AP3RAA000686 - PROTECTION BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
