Vehicle Exploded View - APRILIA SCARABEO DITECH 50 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

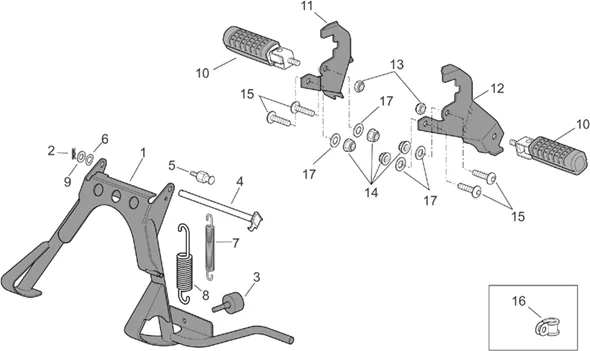

Chassis : 28.02 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/586/Scarabeo_50_Ditech_2001-2004_28.02.PNG)
1 |
AP8235109 - BEQUILLE More informationQuantity required : 1 |
||||||
|
2 |
AP8101606 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8144509-BUFFER FIN DE COURSE STAND More informationQuantity required : 1 |
||||||
|
4 |
AP8221328 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
|
5 |
AP8221323-SCREW ACCROCHAGE SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
6 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/7/img/72317.jpg)
7 |
SPRING DE STAND INNER OEM MOTO GUZZI BREVA, NORGE-AP8221318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/6/img/72316.jpg)
8 |
AP8221317-SPRING RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
9 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
|
10 |
Marchep. pass.-couple |
||||||
|
11 |
AP8146412 - SUPPORT R-P. D PASS.; More informationQuantity required : 1 |
||||||
|
12 |
AP8146535 - SUPPORT R-P. G PASS.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
15 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152058 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/1/4/img/45214.jpg)
16 |
CLAMP DE HOSE OIL OEM PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD-AP8102731 More informationQuantity required : 1 |
||||||
|
17 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 4 |
