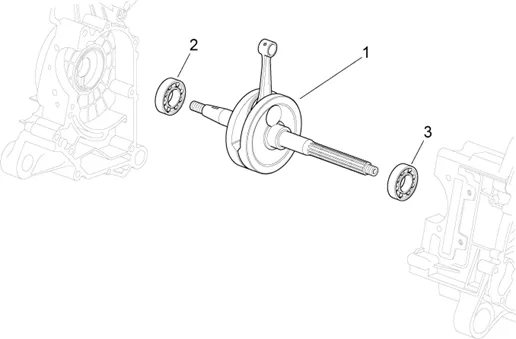

Moteur : 29.30 ARBRE SORTIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/589/Scarabeo_50_4T_4V_E2_2010-2012_29.30.PNG)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/8/img/70978.jpg)
1 |
VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/0/img/70950.jpg)
2 |
BEARING (17X42X13) DE VILLEBREQUIN COTE IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96925R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/2/img/68612_20251023155932.jpg)
3 |
BEARING (20X60X13) EMBIELLAGE OEM ENGINE PIAGGIO 50 4T (SIDE LEFT)-82671R More informationQuantity required : 1 |
