Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

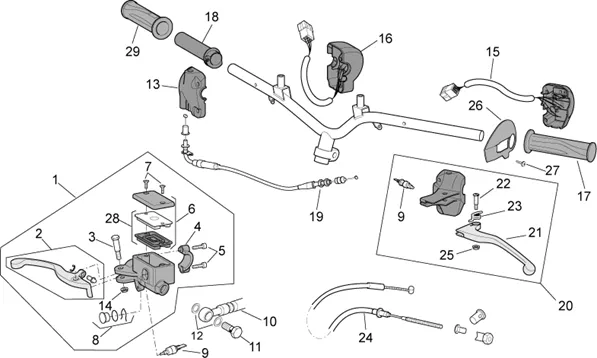

Chassis : 28.14 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/589/Scarabeo_50_4T_4V_E2_2010-2012_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/1/img/72991.jpg)
1 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO 50-125 VESPA LX 2006, VESPA-S 2007 >/APRILIA 50 SCARABEO 2010 >-CM074904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
2 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
3 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
4 |
AP8213586-CAVALLOTTO LEVA BRAKE More informationQuantity required : 1 |
||||||
|
5 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
|
6 |
AP8213587-COVER PUMP More informationQuantity required : 1 |
||||||
|
7 |
AP8213583-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
|
8 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
9 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 2 |
||||||
|
10 |
666705 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
11 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
12 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
13 |
AP8118569-COVER DEVIATEUR FEUX D More informationQuantity required : 1 |
||||||
|
14 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
|
15 |
852239-CABLE HARNESS More informationQuantity required : 1 |
||||||
|
16 |
852240-CABLE HARNESS More informationQuantity required : 1 |
||||||
|
17 |
896564-COUPLE MANETTES More informationQuantity required : 1 |
||||||
|
18 |
AP8218214-HOSE THROTTLE WITHOUT MANETTE More informationQuantity required : 1 |
||||||
|
19 |
2B000822-TRANSM. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
|
20 |
AP8118568-LEVER BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/0/8/img/56708.jpg)
21 |
BRAKE LEVER LEFT OEM PIAGGIO APRILIA 50 SCARABEO 2002 >-AP8218570 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/8/7/img/72587.jpg)
22 |
SCREW OF BRAKE LEVER LEFT OEM PIAGGIO 50 SR, MOJITO, RALLY, GULLIVER, RX, SX-AP8700760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/2/img/65772.jpg)
23 |
SPRING LEVER CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >-177072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/8/4/img/38284.jpg)
24 |
58628R - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
25 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8118490 More informationQuantity required : 1 |
||||||
|
26 |
AP8258245-CHAPE LAT. T? TE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
27 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
28 |
AP8213588-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
|
29 |
896564-COUPLE MANETTES More informationQuantity required : 1 |
