Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

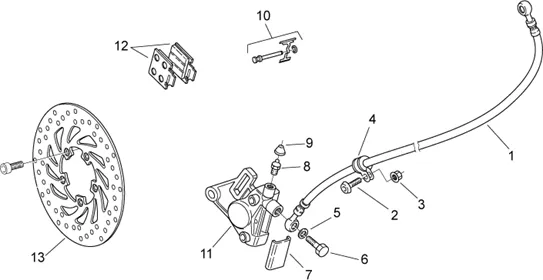

Chassis : 28.25 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/594/Scarabeo_50_2T_E2_Net_2010_28.25.PNG)
1 |
666705 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/1/img/71861.JPG)
3 |
NUT HEXAGONAL AUTOFREINÉ M6-AP8150333 More informationQuantity required : 1 |
||||||
|
4 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
6 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 2 |
||||||
|
7 |
AP8213592-COVER PINZA BRAKE More informationQuantity required : 1 |
||||||
|
8 |
AP8213589-SPURGO ARIA More informationQuantity required : 1 |
||||||
|
9 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
10 |
AP8213591-PERNO + MOLLA PINZA More informationQuantity required : 1 |
||||||
|
11 |
665914-PINCE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/1/img/68011.jpg)
12 |
PLATE BRAKE OEM PIAGGIO 50 NRG POWER 2007 >, TYPHOON 2006 > 2010 AV/GILERA 50 STALKER 2005 >, RUNNER 1998 > 2005 AV/APRILIA 50 SCARABEO 2010 AV (PAIRE)-647171 More informationQuantity required : 1 |
||||||
|
13 |
AP8213381-FRONT BRAKE DISC More informationQuantity required : 1 |
