Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

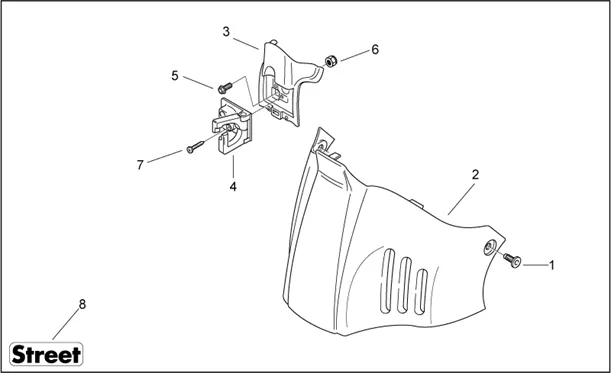

Chassis : 28.13 CARROSSERIE CENTRALE III - CV R. PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/594/Scarabeo_50_2T_E2_Net_2010_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
1 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
1 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
|
2 |
63597400XB1 - COUVERCLE INSPECTION More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179896-COVERING GREY More informationQuantity required : 1 |
|||||||||
|
4 |
AP8144806 - CROCHET PORTE-SAC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
5 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
|||||||||
|
8 |
AP8267035 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
