Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

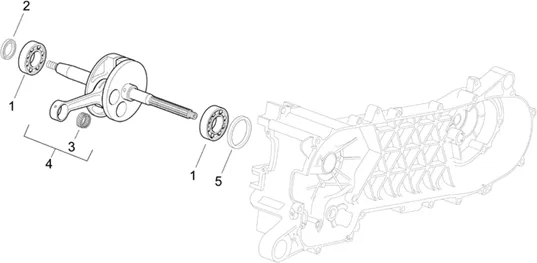

Moteur : 29.34 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/598/Scarabeo_50_2T_E2_Mot_Piaggio_2005-2006_29.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/7/img/66397.jpg)
1 |
BEARING (20X52X12) VILEBREQUIN OEM PIAGGIO 50 TYPHOON 1995 >, FLY 2T 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2T 2005 > ZIP 2000 >/GILERA 50 STALKER 1997 >, RUNNER 1997 >-431125 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/4/img/66614.jpg)
2 |
OIL SEAL (18X28X7) VILEBREQUIN (COTE IGNITION) OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, LX, PRIMAVERA, SPRINT/RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-482315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/1/img/66981.jpg)
3 |
CAGE A AIGUILLES OEM (AUBURN) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/2/img/66982.jpg)
3 |
CAGE AIGUILLE OEM (BLUE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/3/img/66983.jpg)
3 |
CAGE AIGUILLE OEM (BLANCHE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/4/img/66984.jpg)
3 |
CAGE AIGUILLE OEM (JAUNE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500504 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/3/img/66413.jpg)
4 |
EMBIELLAGE/VILEBREQUIN SCOOT OEM PIAGGIO 50 2T ZIP 1997 >, TYPHOON 1996 >, LIBERTY 1998 >, FLY 2005 >, NRG 1998 >, VESPA LX 2005 >/GILERA 50 STALKER 1997 >, RUNNER/APRILIA 50 SR MOTARD 2012 >-4316255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/3/img/66613.jpg)
5 |
OIL SEAL (19X30X6. 5) VILEBREQUIN (COTE VARIATEUR) OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, LX, PRIMAVERA, SPRINT/RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-482314 More informationQuantity required : 1 |
