Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

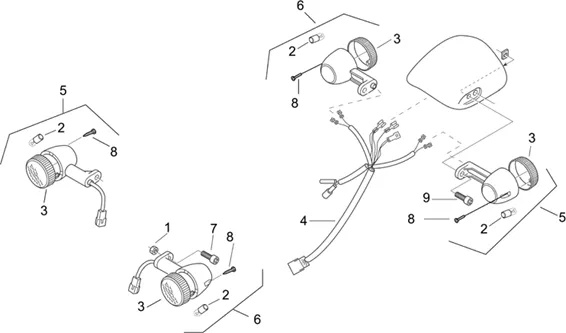

Chassis : 28.29 INDICATEURS DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/598/Scarabeo_50_2T_E2_Mot_Piaggio_2005-2006_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
1 |
NUT M5 OEM PIAGGIO COMMON A RANGE-AP8150025 More informationQuantity required : 2 |
||||||
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
3 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 4 |
||||||
|
4 |
AP8212550 - CABLAGE FEU/CLIGN.AR; More informationQuantity required : 1 |
||||||
|
5 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" APRILIA SCARABEO 50 2T 2000>2006 -AP8224286- More informationQuantity required : 2 |
||||||
|
6 |
AP8224287 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
7 |
SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252 More informationQuantity required : 2 |
||||||
|
8 |
AP8224268 - VIS More informationQuantity required : 4 |
||||||
|
9 |
AP8224267 - VIS More informationQuantity required : 2 |
All the exploded views of this vehicle
-
