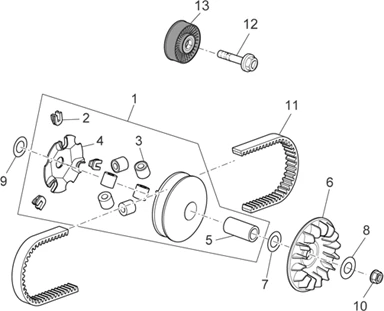

Moteur : 29.50 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_29.50.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/2/img/73232.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 FLY 2006 >, LIBERTY 2006 >, X8 STREET 2006 >, VESPA LX 2006 >, VESPA-S 2007 >/APRILIA 125 SR-MOTARD 2012 >, SPORT-CITY ONE 2008 >, MOJITO 2003 >-CM144402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-CM144403 More informationQuantity required : 1 |
||||||
1 |
CM144409 - LOGEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
|
3 |
873451-ROLLER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/8/img/73078.jpg)
3 |
GALET/ROLLER OEM PIAGGIO 125 LIBERTY 2006 > 2016, FLY 2005 > 2011, X8-STREET 2006 > 2007, VESPA LX 2005 > 2014, VESPA-S 2007 >/APRILIA 125 MOJITO 2003 > (SET OF 6)-CM1038035 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
4 |
FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204 More informationQuantity required : 1 |
||||||
|
5 |
483889-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/4/img/69014.jpg)
6 |
HALF PULLEY FIXE DE VARIATOR OEM PIAGGIO GILERA 180 RUNNER/APRILIA 125 SCARABEO LIGHT-832720 More informationQuantity required : 1 |
||||||
|
7 |
AP3DVN000285-WASHER 17, 5 X 32 X 1 More informationQuantity required : 1 |
||||||
|
7 |
JC09168X00400-WASHER PLATE 1, 8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/7/6/2/img/44762.jpg)
8 |
WASHER PLATE (17. 5X32X3. 5) OEM PIAGGIO COMMON A LA RANGE-AP3DVN000274 More informationQuantity required : 1 |
||||||
|
9 |
871089-SPACER 30X17X7, 5 More informationQuantity required : 1 |
||||||
|
10 |
AP3BDN000273 - ECROU M12X1.0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/8/img/69698.jpg)
11 |
BELT OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 > 2012-856026 More informationQuantity required : 1 |
||||||
|
12 |
AP3AUN000323-VI M10X25 More informationQuantity required : 1 |
||||||
|
13 |
AP1BMA000769-HALF PULLEY More informationQuantity required : 1 |
All the exploded views of this vehicle
-
