Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Carb 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

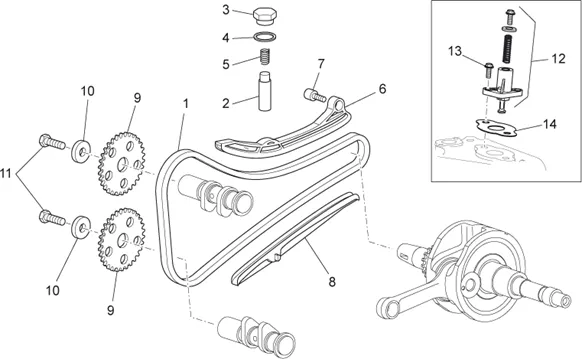

Moteur : 29.47 TENDEUR DE CHAÎNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_29.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/9/img/71109.jpg)
1 |
CHAIN DE TIMING OEM PIAGGIO 125 RS, RX, SX, TUONO APRILIA 2011 >-AP2DCA000254 More informationQuantity required : 1 |
||||||
2 |
AP2DEA000259-TENDICATENA More informationQuantity required : 1 |
||||||
|
3 |
AP3DEA000258 - VIS M18X10 More informationQuantity required : 1 |
||||||
|
4 |
859767 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/7/1/img/44671.jpg)
4 |
O-RING (18X24X1) OEM PIAGGIO COMMON A LA RANGE-AP2DEN000135 More informationQuantity required : 1 |
||||||
|
5 |
AP3DEA000533-SPRING More informationQuantity required : 1 |
||||||
|
6 |
AP3DDA000380-DOIGT More informationQuantity required : 1 |
||||||
|
7 |
AP3AVN000197-SCREW More informationQuantity required : 1 |
||||||
|
8 |
AP3DDA000379-DOIGT More informationQuantity required : 1 |
||||||
|
9 |
AP3DBA000640-COURONNE More informationQuantity required : 2 |
||||||
|
10 |
AP3DVN000235-WASHER 8, 25X23X4 More informationQuantity required : 2 |
||||||
|
11 |
AP4ABN000132-SCREW M8X20X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
12 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
12 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
14 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
