Vehicle Exploded View - APRILIA SCARABEO 4T 100 E3 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

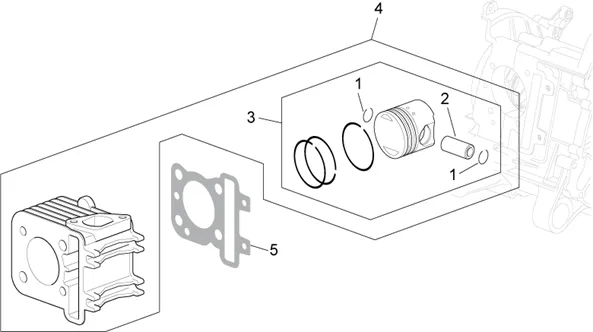

Moteur : 29.32 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/616/Scarabeo_100_4T_E3_Net_2009_29.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/4/img/70934.jpg)
1 |
CLIPS/CIRCLIPS DE PISTON DIAM 13 (FORME EN C) OEM PIAGGIO COMMON A LA RANGE-969213 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/5/img/70935.jpg)
2 |
SHAFT OF PISTON OEM PIAGGIO 50 4T ZIP, SPRINT, PRIMAVERA-969214 More informationQuantity required : 1 |
||||||
3 |
8347940001 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
3 |
8347940002 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
3 |
8347940003 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
3 |
8347940004 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
4 |
CYLINDER PISTON OEM PIAGGIO 100 SCARABEO 4T 2001 >-849055 More informationQuantity required : 1 |
||||||
|
5 |
969722-JUNTA 0, 5 More informationQuantity required : 1 |
