Vehicle Exploded View - APRILIA SCARABEO 4T 100 E3 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

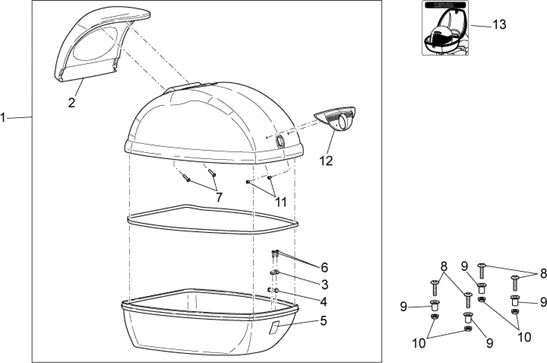

Chassis : 28.11 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/616/Scarabeo_100_4T_E3_Net_2009_28.11.PNG)
1 |
AP8269325 - COFFRE, BLANC V. More informationQuantity required : 1 |
||||||
|
2 |
AP8269326 - DOSSIER More informationQuantity required : 1 |
||||||
|
3 |
AP8221335 - CAVAL SERRUR COFFRET More informationQuantity required : 1 |
||||||
|
4 |
AP8221334 - AXE SERRURE More informationQuantity required : 1 |
||||||
|
5 |
895706-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
7 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152136 More informationQuantity required : 4 |
||||||
|
9 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
11 |
SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420 More informationQuantity required : 2 |
||||||
|
12 |
851949-TARGHETTA'APRILIA' More informationQuantity required : 1 |
||||||
|
13 |
|
