Vehicle Exploded View - APRILIA SCARABEO 2T 100 Mot Yamaha 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

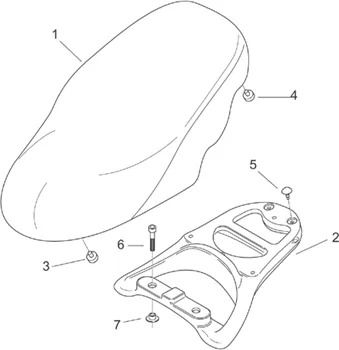

Chassis : 28.14 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/622/Scarabeo_100_2T_Mot_Yamaha_2000_28.14.PNG)
1 |
AP8129281 - SELLE LONGUE MARRON; More informationQuantity required : 1 |
||||||
|
1 |
AP8129490 - SELLE NOIR More informationQuantity required : 1 |
||||||
|
2 |
Porte-bag. gris long; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
3 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 1 |
||||||
|
4 |
AP8220517 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
5 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
6 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
7 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 3 |
