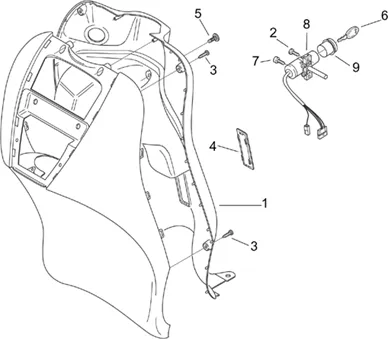

Vehicle Exploded View - APRILIA SCARABEO 2T 100 Mot Yamaha 2000 APRILIA

Chassis : 28.09 CARROSSERIE AV. V - TABLIER INTERNE
Carrosserie av. V - Tablier interne
Search
AP8148742 - TAB. INT.BLEU REEF

1
P2R reference P2R reference 50411
Maker reference Maker reference AP8148742

AP8148742 - TAB. INT.BLEU REEF

More information

Quantity required : 1

AP8148790 - TAB. INT. BLEU CHIPS;

1
P2R reference P2R reference 50437
Maker reference Maker reference AP8148790

AP8148790 - TAB. INT. BLEU CHIPS;

More information

Quantity required : 1

AP8148805 - TAB. INT. CHAMOIS

1
P2R reference P2R reference 50447
Maker reference Maker reference AP8148805

AP8148805 - TAB. INT. CHAMOIS

More information

Quantity required : 1

AP8148818 - TABLIER INT. NOIR;

1
P2R reference P2R reference 50452
Maker reference Maker reference AP8148818

AP8148818 - TABLIER INT. NOIR;

More information

Quantity required : 1

AP8149091 - TABLIER INTERNE ARGENT TH.

1
P2R reference P2R reference 50536
Maker reference Maker reference AP8149091

AP8149091 - TABLIER INTERNE ARGENT TH.

More information

Quantity required : 1

AP8249515 - TAB. INT. ROUGE MIR?;

1
P2R reference P2R reference 58798
Maker reference Maker reference AP8249515

AP8249515 - TAB. INT. ROUGE MIR?;

More information

Quantity required : 1

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

2
P2R reference P2R reference 71919
Maker reference Maker reference AP8152140

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

3
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 4

AP8148750 - COUV. HOMOL.BLEU REEF;

4
P2R reference P2R reference 50416
Maker reference Maker reference AP8148750

AP8148750 - COUV. HOMOL.BLEU REEF;

More information

Quantity required : 1

AP8148793 - COUV. HOMOL.BLEU CHIPS

4
P2R reference P2R reference 50440
Maker reference Maker reference AP8148793

AP8148793 - COUV. HOMOL.BLEU CHIPS

More information

Quantity required : 1

AP8148808 - COUV. HOMOL.CHAMOIS

4
P2R reference P2R reference 50448
Maker reference Maker reference AP8148808

AP8148808 - COUV. HOMOL.CHAMOIS

More information

Quantity required : 1

AP8149094 - COUV. HOMOL.ARGENT TH.

4
P2R reference P2R reference 50539
Maker reference Maker reference AP8149094

AP8149094-COUV. HOMOL. ARGENT TH.

More information

Quantity required : 1

AP8230931 - COUV. DONNEES HOM., NOIR;

4
P2R reference P2R reference 57974
Maker reference Maker reference AP8230931

AP8230931 - COUV. DONNEES HOM., NOIR;

More information

Quantity required : 1

Couv. homol.rouge m.;

4
P2R reference P2R reference
Maker reference Maker reference AP8249517

Couv. homol.rouge m.;

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

5
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 1

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

5
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 1

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

6
P2R reference P2R reference 45423
Maker reference Maker reference AP8104613

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

7
P2R reference P2R reference 71824
Maker reference Maker reference AP8150137

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

More information

Quantity required : 1

AP8104057 - BLOC DEMARREUR-BLOC

8
P2R reference P2R reference 45299
Maker reference Maker reference AP8104057

AP8104057 - BLOC DEMARREUR-BLOC

More information

Quantity required : 1

AP8220386 - JOINT BLOC DEMARR.

9
P2R reference P2R reference 56873
Maker reference Maker reference AP8220386

AP8220386-GASKET BLOC DEMARR.

More information

Quantity required : 1
