Vehicle Exploded View - APRILIA RXV 550 Vdb-Merriman 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

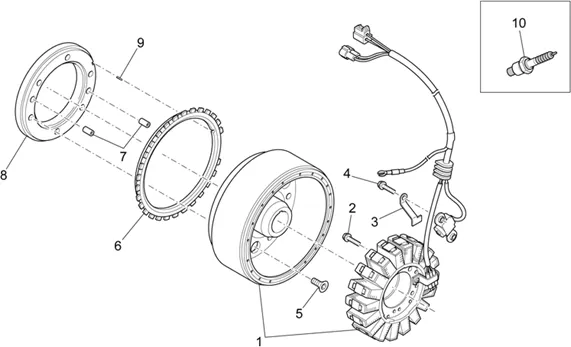

Moteur : 29.55 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/635/RXV_550_Vdb-Merriman_2008_29.55.PNG)
1 |
855240 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/6/0/img/96560.jpg)
1 |
VOLANT MAGNETIQUE COMPLETE OEM PIAGGIO 450-550 RXV/SXV APRILIA OFF-ROAD 2006 > 2011-855181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
2 |
SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799 More informationQuantity required : 3 |
||||||
|
3 |
855489-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
4 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/0/4/img/97804.jpg)
5 |
SCREW BTR HEAD FRAISEE (6X18) OEM PIAGGIO COMMON A LA RANGE-AP9150401 More informationQuantity required : 6 |
||||||
|
6 |
AP9150205-WHEEL FONICA * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/9/1/img/97791.jpg)
7 |
GOUPILLE (5X8) WHEEL PHONIQUE IGNITION OEM PIAGGIO APRILIA 450-550 SXV, RXV-AP9150380 More informationQuantity required : 2 |
||||||
|
8 |
AP9150204 - ANELLO ESTERNO PER RUO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/3/4/img/97834.jpg)
9 |
WASHER PLATE (13. 5X21X1) OEM PIAGGIO COMMON A LA RANGE-AP9150451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
10 |
SPARK PLUG CR8EKB OEM PIAGGIO 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO-639687 More informationQuantity required : 2 |
