Vehicle Exploded View - APRILIA RXV 550 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

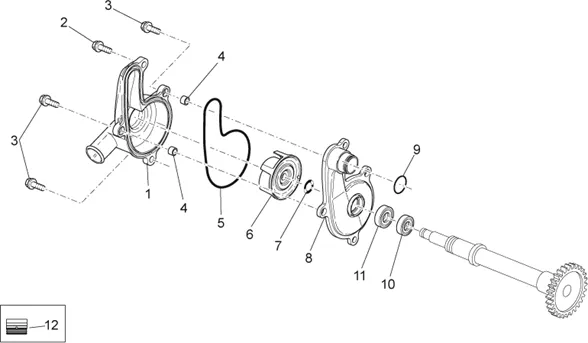

Moteur : 29.54 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/643/RXV_550_2006-2007_29.54.PNG)
1 |
AP9150484 - CORPO POMPA ACQUA More informationQuantity required : 1 |
||||||
|
2 |
853678 - VIS M6X40 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
2 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 1 |
||||||
|
3 |
853595 - VIS M6X15 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
|
4 |
AP9150119-BUSSOLA DI RIFERIMENTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/7/8/img/97778.jpg)
5 |
AP9150352 - O-RING 88.57X2.62 (OR More informationQuantity required : 1 |
||||||
|
6 |
AP9150132-GIRANTE PUMP ACQUA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/9/img/72619.jpg)
7 |
WASHER PLATE (7X12) OEM PIAGGIO COMMON A LA RANGE-AP9150292 More informationQuantity required : 1 |
||||||
|
8 |
AP9150464 - VOLUTA POMPA ACQUA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/4/1/4/img/96414.jpg)
9 |
851283 - CIRCLIPS 18X1,8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/3/0/img/97830.jpg)
10 |
O RING OF WATER PUMP OEM PIAGGIO APRILIA 450-550 SXV, RXV-AP9150443 More informationQuantity required : 1 |
||||||
|
10 |
AP9150474 - ANELLO TENUTA D10-D22- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/4/6/2/img/37462.jpg)
11 |
GASKET WATER PUMP OEM PIAGGIO APRILIA 450-550 SXV, RXV-851013 More informationQuantity required : 1 |
||||||
|
11 |
AP9150474 - ANELLO TENUTA D10-D22- More informationQuantity required : 1 |
||||||
|
12 |
851010-BUSH More informationQuantity required : 1 |
