Vehicle Exploded View - APRILIA RXV 550 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

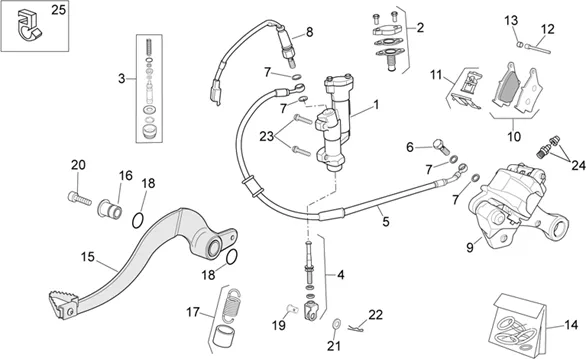

Chassis : 28.30 SYS.FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/643/RXV_550_2006-2007_28.30.PNG)
1 |
AP9100475 - ASSIEME POMPA FRENO POST. More informationQuantity required : 1 |
||||||
|
2 |
AP9100794 - KIT REVISIONE TAPPO More informationQuantity required : 1 |
||||||
|
3 |
AP9100793 - KIT PISTONCINO COMPLETO More informationQuantity required : 1 |
||||||
|
4 |
AP9100795-KIT REVISIONE LEVA BRAKE More informationQuantity required : 1 |
||||||
|
5 |
AP9100478-TUBO BRAKE POSTERIORE More informationQuantity required : 1 |
||||||
|
6 |
AP9100472-SCREW TEF M10X1. 25-L22 More informationQuantity required : 2 |
||||||
|
7 |
AP9100473 - ROSETTA D15-D10,1 SP1.4 More informationQuantity required : 4 |
||||||
|
8 |
AP9100417 - INTERRUTTORE FRENO POSTER. More informationQuantity required : 1 |
||||||
|
9 |
AP9100479 - ASSIEME PINZA FRENO POST. More informationQuantity required : 1 |
||||||
|
10 |
AP9100797 - PASTIGLIE -COPPIA- More informationQuantity required : 1 |
||||||
|
11 |
AP9100798-MOLLA More informationQuantity required : 1 |
||||||
|
12 |
AP9100800-PERNO CON COPIGLIA More informationQuantity required : 1 |
||||||
|
13 |
AP9100799-CAP PERNO More informationQuantity required : 1 |
||||||
|
14 |
AP9100796 - KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
|
15 |
AP9100990 - ASS.LEVA FRENO POSTERIORE More informationQuantity required : 1 |
||||||
|
16 |
853657-HUB More informationQuantity required : 1 |
||||||
|
16 |
AP9100290 - BOCCOLA FISS.PEDALE FRENO More informationQuantity required : 1 |
||||||
|
17 |
AP9100291 - MOLLA PEDALE FRENO More informationQuantity required : 1 |
||||||
|
18 |
AP9100477-ANELLO OR D. FILO 2 D. INT. 18 More informationQuantity required : 2 |
||||||
|
19 |
853699 - PIVOT LEVIER DU FREIN More informationQuantity required : 1 |
||||||
|
19 |
AP9100354-PERNO LEVA BRAKE POST. More informationQuantity required : 1 |
||||||
|
20 |
853698 - VIS M8X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
20 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
21 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
|
22 |
AP8101928-GOUPILLE More informationQuantity required : 1 |
||||||
|
23 |
853595 - VIS M6X15 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
23 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
24 |
AP9100789 - KIT SPURGO More informationQuantity required : 1 |
||||||
|
25 |
AP9100752 - MOLLETTA RITEGNO CAVI More informationQuantity required : 2 |
