Vehicle Exploded View - APRILIA RXV 450 Vdb Merriman 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

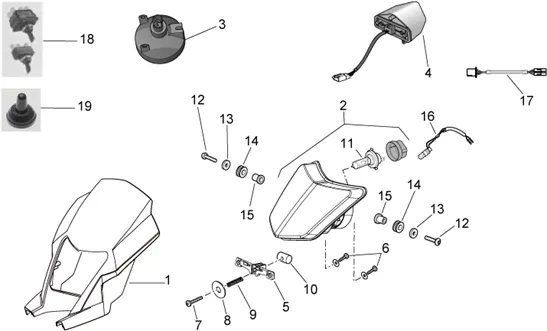

Chassis : 28.29 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/632/RXV_450_Vdb_Merriman_2008_28.29.PNG)
1 |
855492 - 'PORTE-FEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
2 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 RX, SX 2014 >, 125 RX, SX 2008 > 2010, 450-550 RXV, SXV 2008 > 2011-855038 More informationQuantity required : 1 |
||||||
|
3 |
AP9100970 - PROIETTORE ANTERIORE RACING More informationQuantity required : 2 |
||||||
|
4 |
855039 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
5 |
AP9100635-PIASTRINA REGOLAZ. FANALE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
|
7 |
AP8150475-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
8 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 1 |
||||||
|
9 |
AP8221198-SPRING REGLAGE HEADLAMP More informationQuantity required : 1 |
||||||
|
10 |
AP9100747-BARILOTTO REGOLAZ. FANALE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
11 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
13 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
14 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
|
15 |
AP8121665-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
|
16 |
855320 - CABLAGE More informationQuantity required : 1 |
||||||
|
17 |
855494 - CABLAGE More informationQuantity required : 1 |
||||||
|
18 |
855496-INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
19 |
855497 - CACHE More informationQuantity required : 1 |
