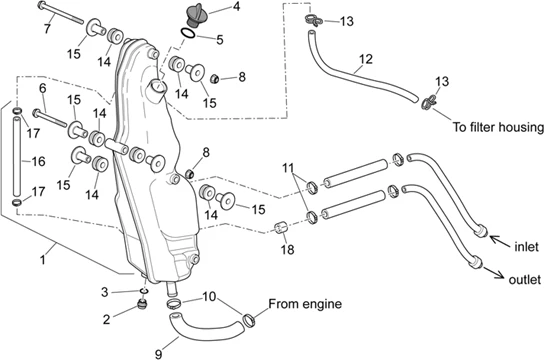

Chassis : 28.13 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/632/RXV_450_Vdb_Merriman_2008_28.13.PNG)
1 |
AP9100343 - ASSIEME SERBATOIO OLIO More informationQuantity required : 1 |
||||||
|
2 |
AP9150174-CAP SCARICO OIL MOT More informationQuantity required : 1 |
||||||
|
3 |
AP9150349 - ROSETTA DI ALLUMINIO D More informationQuantity required : 1 |
||||||
|
4 |
853673 - BOUCHON REMPL. HUILE M20X1,5 More informationQuantity required : 1 |
||||||
|
5 |
Bague d'étanchéité |
||||||
|
6 |
AP9100638 - VITE TE FLANGIATA M6X70 More informationQuantity required : 1 |
||||||
|
7 |
AP9100661-SCREW TEF M6X95 More informationQuantity required : 1 |
||||||
|
8 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 2 |
||||||
|
9 |
AP9100496 - TUBO BLOW-BY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/6/img/71206.jpg)
10 |
CLAMP CLIC (16. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8102903 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
11 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/5/img/71425.jpg)
12 |
HOSE/FUEL HOSE (9X14) OEM PIAGGIO APRILIA 450-550 SXV, RXV, 750 BREVA, 1000 RSV-2, TUONO, FALCO, FUTURA, CAPONORD-AP8120987 More informationQuantity required : 1 |
||||||
|
13 |
AP8102525-CLAMP ROBINET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
14 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120223 More informationQuantity required : 6 |
||||||
|
15 |
AP9100950 - BOCCOLA SERB D14-D9-D6.5-H12 More informationQuantity required : 6 |
||||||
|
16 |
AP9100665 - TUBO LIVELLO OLIO More informationQuantity required : 1 |
||||||
|
17 |
AP9100951-FASCETTA STRINGITUBO More informationQuantity required : 2 |
||||||
|
18 |
Tuyau caoutchouc |
