Vehicle Exploded View - APRILIA RX 50 1995-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

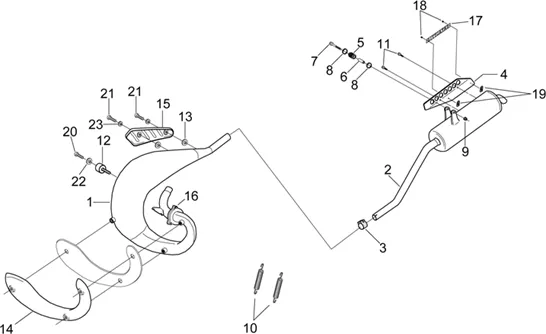

Chassis : 28.23 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/684/RX_50_1995-2002_28.23.PNG)
1 |
Pot catalytique |
||||||
|
1 |
Pot catalytique |
||||||
|
1 |
AP8219338 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
1 |
AP8219342 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
1 |
Pot catalytique |
||||||
|
1 |
Pot catalytique |
||||||
|
1 |
Pot catalytique |
||||||
|
1 |
AP8219579 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
AP8219228 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
Silencieux; |
||||||
|
2 |
AP8219555 - SILENCIEUX; More informationQuantity required : 1 |
||||||
|
3 |
AP8201841-CLAMP SILENCER-SILENC. More informationQuantity required : 1 |
||||||
|
4 |
Protect. silencieux |
||||||
|
5 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
6 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
7 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
8 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
10 |
SPRING EXHAUST OEM APRILIA 50-125 COMMON A LA RANGE 2005 <-AP8101259 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/6/img/97096.jpg)
11 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342 More informationQuantity required : 2 |
||||||
|
12 |
AP8201121 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
13 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 2 |
||||||
|
14 |
Grille prot. pot AV |
||||||
|
15 |
AP8119494 - PROTE ECHAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/3/5/img/56735.jpg)
16 |
AP8219321 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
16 |
AP8219552-GASKET FLANGE SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
17 |
Plaquette catalytic |
||||||
|
18 |
Rivet |
||||||
|
19 |
Clip |
||||||
|
20 |
AP8152226-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
22 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
23 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
