Vehicle Exploded View - APRILIA RX 50 1995-2002 APRILIA

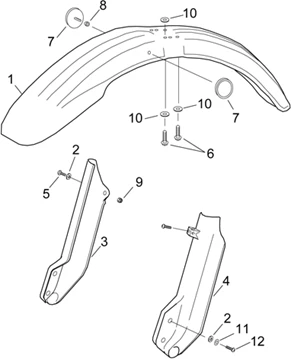

Chassis : 28.07 CARROSSERIE AV. I
Carrosserie av. I
Search
Garde-boue AV.bleu

1
P2R reference P2R reference
Maker reference Maker reference AP8226800

Garde-boue AV.bleu

Garde-boue AV bleu

1
P2R reference P2R reference
Maker reference Maker reference AP8226293

Garde-boue AV bleu

Garde-boue AV noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8226306

Garde-boue AV noir;

Garde-boue avant peint orange;

1
P2R reference P2R reference
Maker reference Maker reference AP8226381

Garde-boue avant peint orange;

Garde-boue AV bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8226390

Garde-boue AV bleu;

Garde-boue AV alu;

1
P2R reference P2R reference
Maker reference Maker reference AP8226423

Garde-boue AV alu;

AP8226477 - GARDE-B AV BLEU;

1
P2R reference P2R reference 57637
Maker reference Maker reference AP8226477

AP8226477 - GARDE-B AV BLEU;

More information

Quantity required : 1

AP8226491 - G.-B. AV.P.JAUNE;

1
P2R reference P2R reference 57646
Maker reference Maker reference AP8226491

AP8226491 - G.-B. AV.P.JAUNE;

More information

Quantity required : 1

AP8226680 - GARDE-BOUE AV.P.H.R.;

1
P2R reference P2R reference 57693
Maker reference Maker reference AP8226680

AP8226680 - GARDE-BOUE AV.P.H.R.;

More information

Quantity required : 1

Garde-b AV.noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8226747

Garde-b AV.noir;

AP8150182 - RONDELLE ELASTIQUE COURBE

2
P2R reference P2R reference 71835
Maker reference Maker reference AP8150182

AP8150182-WASHER ELASTIC COURBE

More information

Quantity required : 5

AP8226429 - PROTEGE-TIGE DROIT B;

3
P2R reference P2R reference 57627
Maker reference Maker reference AP8226429

AP8226429 - PROTEGE-TIGE DROIT B;

More information

Quantity required : 1

AP8231887 - PROTEGE-TIGE DROIT;

3
P2R reference P2R reference 58010
Maker reference Maker reference AP8231887

AP8231887 - PROTEGE-TIGE DROIT;

More information

Quantity required : 1

Protège-tige droit o;

3
P2R reference P2R reference
Maker reference Maker reference AP8239267

Protège-tige droit o;

AP8258093 - PROTEGE-TIGE DROIT NOIR;

3
P2R reference P2R reference 59027
Maker reference Maker reference AP8258093

AP8258093 - PROTEGE-TIGE DROIT NOIR;

More information

Quantity required : 1

Protège-tige D. platine

3
P2R reference P2R reference
Maker reference Maker reference AP8268033

Protège-tige D. platine

Protège-tige G b;

4
P2R reference P2R reference
Maker reference Maker reference AP8226430

Protège-tige G b;

Protège-tige G o;

4
P2R reference P2R reference
Maker reference Maker reference AP8239268

Protège-tige G o;

AP8258094 - PROTEGE-TIGE GAUCHE NOIR;

4
P2R reference P2R reference 59028
Maker reference Maker reference AP8258094

AP8258094-PROTEGE-ROD LEFT BLACK

More information

Quantity required : 1

Protège-tige G. platine

4
P2R reference P2R reference
Maker reference Maker reference AP8268034

Protège-tige G. platine

Protège-tige G;

4
P2R reference P2R reference
Maker reference Maker reference AP8231888

Protège-tige G;

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

5
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

6
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 4

CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163

7
P2R reference P2R reference 72324
Maker reference Maker reference AP8224163

CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163

More information

Quantity required : 2

AP8221232 - DOUILLE

8
P2R reference P2R reference 57026
Maker reference Maker reference AP8221232

AP8221232 - DOUILLE

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

9
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

More information

Quantity required : 1

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

10
P2R reference P2R reference 71834
Maker reference Maker reference AP8150179

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

More information

Quantity required : 6

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

11
P2R reference P2R reference 71833
Maker reference Maker reference AP8150178

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

More information

Quantity required : 4

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

12
P2R reference P2R reference 71913
Maker reference Maker reference AP8152108

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

More information

Quantity required : 4
