Vehicle Exploded View - APRILIA RX 125 E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

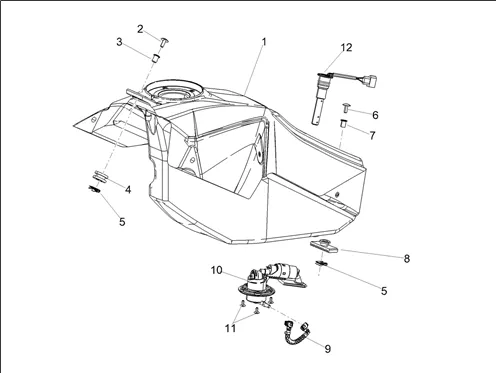

Châssis/coque : 09.06 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1019/RX_125_E5_2022_(EMEA)_09.06.png)
1 |
2B007270 FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701 More informationQuantity required : 1 |
||||||
|
3 |
00N01001821-CASQ. DT. SOPTE. FARO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
4 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
6 |
2R000346-SCREW More informationQuantity required : 1 |
||||||
|
7 |
2B007961 T BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
8 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
|
9 |
2B004711-FUEL HOSE More informationQuantity required : 1 |
||||||
|
10 |
2B007538 PUMP FUEL More informationQuantity required : 1 |
||||||
|
11 |
2R000403-SCREW M5 - 16 More informationQuantity required : 2 |
||||||
|
12 |
2R000350-INDICATEUR RESERVE OIL More informationQuantity required : 1 |
