Vehicle Exploded View - APRILIA RX 125 E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

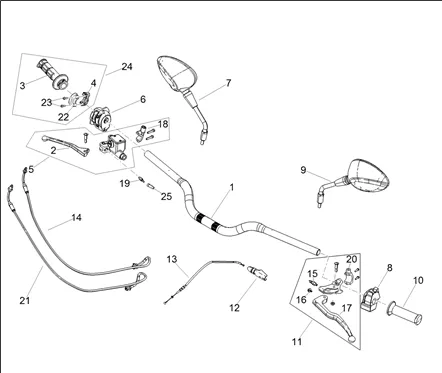

Châssis/coque : 07.12 GUIDON ET COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1019/RX_125_E5_2022_(EMEA)_07.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/9/8/0/img/176980.jpg)
1 |
HANDLEBAR OEM APRILIA 125 RX, SX 2021 > 2024-2B008250 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/9/8/1/img/176981.jpg)
2 |
LEVER RIGHT OEM PIAGGIO 125 RX, SX APRILIA 2021 >-2B008249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/9/8/2/img/176982.jpg)
3 |
GRIP/SLEEVE DE THROTTLE OEM PIAGGIO 125 SX, RX 2021 >-2B007766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
4 |
HALF CLAMP LOWER DE THROTTLE GRIP OEM PIAGGIO COMMON A LA RANGE-598369 More informationQuantity required : 1 |
||||||
5 |
CM074913 BRAKE PUMP More informationQuantity required : 1 |
||||||
|
6 |
2B008547 RIGHT ELETTRICAL DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/0/img/154550.jpg)
7 |
RIGHT MIRROR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-2R000359 More informationQuantity required : 1 |
||||||
|
8 |
2R000360-SWITCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/2/img/154552.jpg)
9 |
LEFT MIRROR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-2R000353 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/5/8/img/64358.jpg)
10 |
REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071 More informationQuantity required : 1 |
||||||
|
11 |
2B007583 - COMMANDE EMBRAYAGE CPL More informationQuantity required : 1 |
||||||
|
12 |
2R000342-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/5/img/154555.JPG)
13 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 125 RX, SX 2018 >-2R000415 More informationQuantity required : 1 |
||||||
|
14 |
2B007644 CLOSED GAS CONTROL TRASMISSION More informationQuantity required : 1 |
||||||
|
15 |
2D000630-INTERRUPTEUR D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
15 |
2R000376-INTERRUPTEUR STOP More informationQuantity required : 1 |
||||||
|
16 |
2R000422-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/9/img/154559.jpg)
17 |
LEVER CLUTCH OEM PIAGGIO 125 RX, SX 2018 >-2R000446 More informationQuantity required : 1 |
||||||
|
18 |
2B004544-PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
19 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
20 |
2R000535-CAVALIER More informationQuantity required : 1 |
||||||
|
21 |
2B007643 OPEN GAS CONTROL TRASMISSION More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
23 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-1C004839 More informationQuantity required : 2 |
||||||
|
24 |
2R000520-CONTROL THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
25 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
