Vehicle Exploded View - APRILIA RX 125 E4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

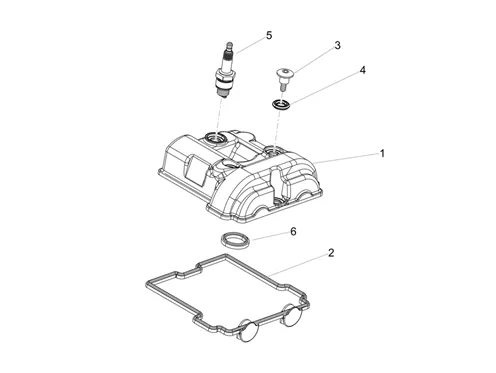

Moteur : 03.090 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/817/RX_125_E4_2018_(EMEA)_03.090.png)
1 |
1A0055645 - COUVRE-CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/9/6/img/70496.jpg)
2 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 >, 125 RS4 2011 >, TUONO 2017 >-873651 More informationQuantity required : 1 |
||||||
|
3 |
AP3ATN000118-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/2/3/img/71123.jpg)
4 |
GASKET SCREW COVER DE CYLINDER HEAD OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 >, 125 RS4 2011 >-AP3CAA000399 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
5 |
SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/4/3/img/70543.jpg)
6 |
GASKET CENTRAL COVER DE CYLINDER HEAD OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 >, 125 RS4 2011 >-874617 More informationQuantity required : 1 |
