Vehicle Exploded View - APRILIA RX 125 E4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

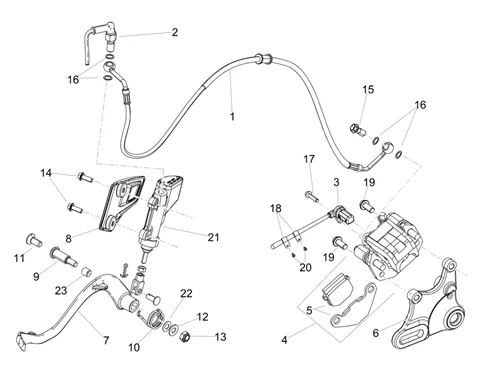

Châssis : 06.160 SYS.FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/817/RX_125_E4_2018_(EMEA)_06.160.png)
1 |
2R000361-TUBE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/3/2/img/154532.jpg)
2 |
INTERRUPTEUR DE STOP OF BRAKE REAR OEM APRILIA 125 RX, SX 2018 >-2R000379 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
3 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
3 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
4 |
2R000372-BRAKE CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/3/4/img/154534.jpg)
5 |
PLATE BRAKE REAR OEM PIAGGIO 125 RX, SX APRILIA 2018 > 2R000504 More informationQuantity required : 1 |
||||||
|
6 |
2B004224-STAFFA DI BRACKET PINZA BRAKE POST More informationQuantity required : 1 |
||||||
|
7 |
LEVER/PEDAL OF BRAKE REAR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-865585 More informationQuantity required : 1 |
||||||
|
8 |
863552-TAPA BOMBA BRAKE TRAS. MUL125 More informationQuantity required : 1 |
||||||
|
9 |
2R000475-STUD DE LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/6/3/img/151763.jpg)
10 |
SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020 More informationQuantity required : 1 |
||||||
|
10 |
SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020 More informationQuantity required : 1 |
||||||
|
11 |
2R000480-SCREW More informationQuantity required : 1 |
||||||
|
12 |
2R000419-WASHER # 8. 4 - # 16 - 1. 6 More informationQuantity required : 1 |
||||||
|
13 |
2R000441-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701 More informationQuantity required : 2 |
||||||
|
15 |
2R000377-SCREW More informationQuantity required : 1 |
||||||
|
16 |
2R000375-WASHER More informationQuantity required : 4 |
||||||
|
17 |
2B002567-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/4/img/70044.jpg)
18 |
864114-BRIDA FIJ. CABLE D12. 70 NEGRA More informationQuantity required : 2 |
||||||
|
19 |
SCREW FLANGE TH (8X18) OEM PIAGGIO COMMON A LA RANGE-2B002417 More informationQuantity required : 2 |
||||||
|
20 |
2R000425-SCREW More informationQuantity required : 2 |
||||||
|
21 |
2R000490-MAITRE CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/5/img/63655.jpg)
22 |
SPACER DE PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00005527540 More informationQuantity required : 1 |
||||||
|
23 |
2R000476-GASKET More informationQuantity required : 1 |
