Vehicle Exploded View - GILERA RUNNER 50 SP Race
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

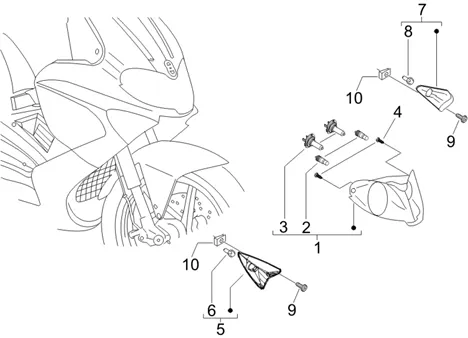

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/163/Runner_50_SP_Race_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/0/5/img/85705.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO GILERA RUNNER 50-125 2005 >-639184 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
2 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/4/img/67184.jpg)
3 |
AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-580734 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/0/6/img/85706.jpg)
5 |
FRONT RIGHT INDICATOR OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-639185 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
6 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/0/7/img/85707.jpg)
7 |
FRONT LEFT INDICATOR OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-639186 More informationQuantity required : 1 |
||||||
|
8 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
10 |
PLAQUETTE |
