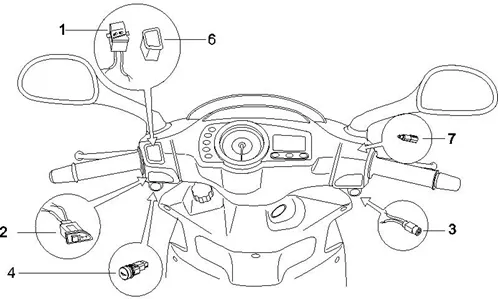

Vehicle Exploded View - GILERA RUNNER 50 SP Race GILERA

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
Inverseurs - Commutateurs - Boutons - Interrupteurs
Search
SWITCH CODE/HEADLAMP OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER-642968

1
P2R reference P2R reference 67987
Maker reference Maker reference 642968

SWITCH CODE/HEADLAMP OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER-642968

More information

Quantity required : 1

SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795

2
P2R reference P2R reference 67984
Maker reference Maker reference 6426795

SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795

More information

Quantity required : 1

BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R

3
P2R reference P2R reference 67176
Maker reference Maker reference 58057R

BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R

More information

Quantity required : 1

BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R

4
P2R reference P2R reference 67177
Maker reference Maker reference 58058R

BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R

More information

Quantity required : 1

CAP/OBTURATEUR DE PANEL DE EDGE OEM PIAGGIO COMMON A LA RANGE-AP8127896

6
P2R reference P2R reference 71636
Maker reference Maker reference AP8127896

CAP/OBTURATEUR DE PANEL DE EDGE OEM PIAGGIO COMMON A LA RANGE-AP8127896

More information

Quantity required : 1

CONTACTEUR LAMP STOP MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS-583575

7
P2R reference P2R reference 67286
Maker reference Maker reference 583575

CONTACTEUR LAMP STOP MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS-583575

More information

Quantity required : 2
