Vehicle Exploded View - GILERA RUNNER 50 SP 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

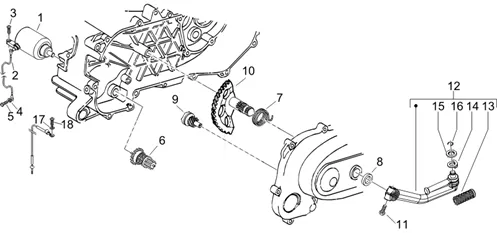

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/160/Runner_50_SP_2007_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/1/img/68531.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R More informationQuantity required : 1 |
||||||
2 |
642292-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
3 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
3 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
4 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
5 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/4/img/66164.jpg)
6 |
LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/3/img/66223.jpg)
7 |
SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
8 |
WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/3/img/66633.jpg)
9 |
OEM SCOOTER KICK SCOOT OEM PIAGGIO 50 2T ET 4T FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA LX, PRIMAVERA/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-483537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/7/img/68967.jpg)
10 |
SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/8/img/66168.jpg)
12 |
KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/9/img/66169.jpg)
13 |
PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217 More informationQuantity required : 1 |
||||||
|
14 |
KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214 More informationQuantity required : 1 |
||||||
|
15 |
286219-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/5/img/66185.jpg)
16 |
CLIPS/CIRCLIPS KICK OEM PIAGGIO COMMON A LA RANGE-288041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
17 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
18 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 1 |
