Vehicle Exploded View - GILERA RUNNER 50 SP 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

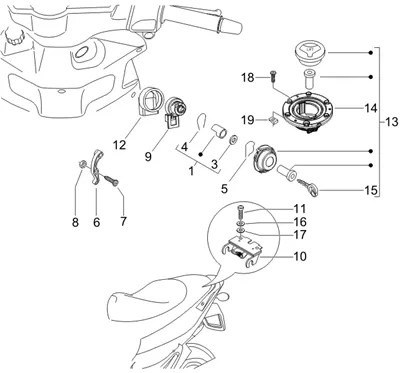

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/160/Runner_50_SP_2007_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
1 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
3 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
4 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
5 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/4/img/78084.jpg)
6 |
CLIQUET DE LOCK OEM PIAGGIO 50 NRG-299902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
7 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.jpg)
9 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
||||||
|
9 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
10 |
MECANISME OUVERTURE DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM023704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
|
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/1/img/67241.jpg)
12 |
CAPUCHON DE SWITCH A CLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/1/1/img/140611.jpg)
13 |
IGNITION SWITCH/LOCK OEM PIAGGIO GILERA 50 RUNNER 2005 >-949611 More informationQuantity required : 1 |
||||||
14 |
959465-FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/3/7/img/85037.jpg)
15 |
EBAUCHE DE CLE OEM PIAGGIO GILERA 50 RUNNER 2005 >-624321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
16 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
17 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
18 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
19 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 3 |
