Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

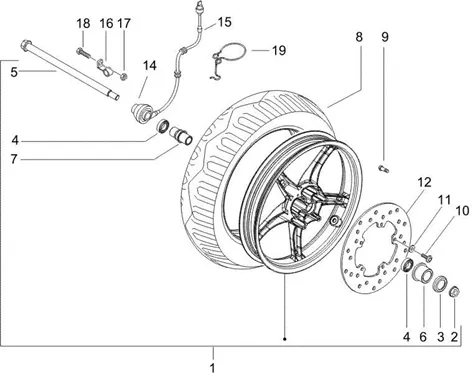

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/155/Runner_50_Pure_Jet_2005-2006_04.11.PNG)
1 |
ROUE AVANT RUNNER RST |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
3 |
WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
4 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/3/img/70913.jpg)
5 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 NRG, RUNNER GILERA 2005 >-959376 More informationQuantity required : 1 |
||||||
|
6 |
ENTROISE |
||||||
|
7 |
959378-ENTROISE More informationQuantity required : 1 |
||||||
|
8 |
PNEU 120/70-14 55L TL PIRELLI (EVO) |
||||||
|
8 |
949597 - PNEUS 120/70-14" 55L SAVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
9 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 6 |
||||||
|
11 |
274706-WASHER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/6/3/img/140363.jpg)
12 |
BRAKE DISC MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3 2007 >, 125-300 YOURBAN, 50 NRG 2018 >/GILERA 50-125 RUNNER 2005 >, 500 FUOCO 2007 > FRONT-56394R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
12 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG POWER AV, 50-125 LIBERTY AV, 125 FLY 2012 > 2013 AR, 125-250-300 VESPA GTS AV + AR/GILERA 50 RUNNER 2005 > AV, 125 RUNNER 1998 > 2016 AR-56484R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/2/img/67052.jpg)
14 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (CODEUR) SCOOT OEM PIAGGIO 50 NRG 2006 >, 125-250-500 X9/GILERA 50-125 RUNNER, DNA-56435R More informationQuantity required : 1 |
||||||
|
15 |
CM022202 GASKET More informationQuantity required : 1 |
||||||
|
16 |
179013-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
17 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
18 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
18 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
19 |
639426-CLAMP More informationQuantity required : 1 |
