Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

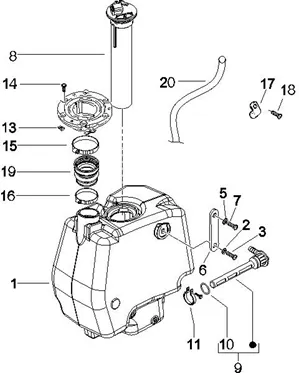

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/155/Runner_50_Pure_Jet_2005-2006_02.47.PNG)
1 |
624265 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
2 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
2 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
3 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
5 |
RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
|
6 |
Equerre |
||||||
|
7 |
959614-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/8/1/img/201781.jpg)
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
|
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/7/8/img/91678.jpg)
9 |
FUEL COMPLETE COUPLING "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA GTS, VESPA LX/GILERA 125 RUNNER (50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>-PAR DEFAUT) -674592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/2/img/149102.jpg)
9 |
FITTING/ROBINET DE FUEL TANK OEM PIAGGIO 125 X8, X9, X-EVO, MP3, BEVERLY-674593 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
10 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
11 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
14 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 3 |
||||||
|
15 |
CM001919-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/9/img/72879.JPG)
16 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/GILERA-CM001920 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/6/5/img/91465.jpg)
19 |
SLEEVE DE FUEL TANK OEM PIAGGIO 125-300-350 BEVERLY, 125 MEDLEY, 50 NRG POWER/GILERA 50-125 RUNNER-673778 More informationQuantity required : 1 |
