Vehicle Exploded View - GILERA RUNNER 200 VXR 4T Race 2005-2006 GILERA

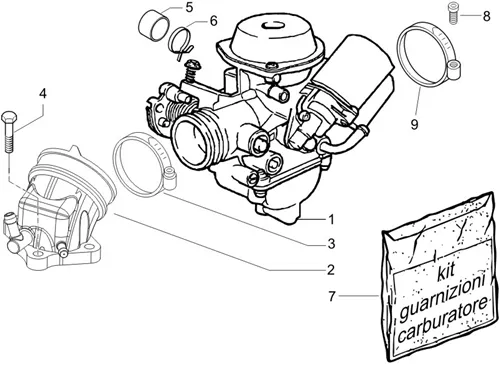

Moteur : 01.39 CARBURATEUR COMPLET RACCORD D ADMISSION
Carburateur complet raccord d admission
Search
CM128214 - CARBURATEUR

1
P2R reference P2R reference 73143
Maker reference Maker reference CM128214

CM128214-CARBURETTOR

More information

Quantity required : 1

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

2
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 1

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

2
P2R reference P2R reference 72712
Maker reference Maker reference B016579

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

More information

Quantity required : 1

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

3
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 1

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

3
P2R reference P2R reference 72712
Maker reference Maker reference B016579

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

4
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 3

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

4
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 3

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

5
P2R reference P2R reference 66046
Maker reference Maker reference 260918

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

More information

Quantity required : 1

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

6
P2R reference P2R reference 69200
Maker reference Maker reference 841695

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

More information

Quantity required : 1

494921 - JEU DE JOINTS

7
P2R reference P2R reference 66793
Maker reference Maker reference 494921

494921 - JEU DE JOINTS

More information

Quantity required : 1

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

7
P2R reference P2R reference 72897
Maker reference Maker reference CM002916

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

More information

Quantity required : 1

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

9
P2R reference P2R reference 72897
Maker reference Maker reference CM002916

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

More information

Quantity required : 1
