Vehicle Exploded View - GILERA RUNNER 200 VXR 4T Race 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

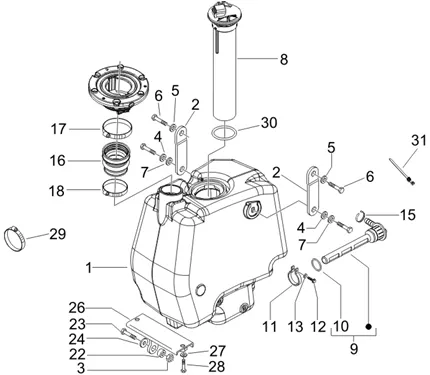

Chassis parties plastiques carrosseries : 02.47 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/200/Runner_200_VXR_4T_Race_2005-2006_02.47.PNG)
1 |
653041-FUEL TANK More informationQuantity required : 1 |
||||||
|
2 |
624090-BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/4/img/65344.jpg)
4 |
WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
6 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
7 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/8/1/img/201781.jpg)
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
|
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/7/8/img/91678.jpg)
9 |
FUEL COMPLETE COUPLING "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA GTS, VESPA LX/GILERA 125 RUNNER (50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>-PAR DEFAUT) -674592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
10 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
11 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
|
12 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
12 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
13 |
WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
15 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/6/5/img/91465.jpg)
16 |
SLEEVE DE FUEL TANK OEM PIAGGIO 125-300-350 BEVERLY, 125 MEDLEY, 50 NRG POWER/GILERA 50-125 RUNNER-673778 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/9/img/72879.JPG)
17 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/GILERA-CM001920 More informationQuantity required : 1 |
||||||
|
18 |
CM001919-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
22 |
231027-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
23 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 1 |
||||||
|
24 |
268304-WASHER More informationQuantity required : 1 |
||||||
|
26 |
624326-BRACKET More informationQuantity required : 1 |
||||||
|
27 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
28 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
29 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
30 |
GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
31 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
