Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

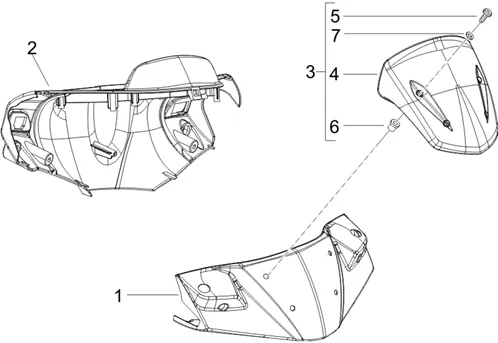

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/198/Runner_200_VXR_4T_2005-2006_03.01.PNG)
1 |
COUVRE GUIDON AV RUNNER BRUT |
|||||||||
|
1 |
COUVRE GUIDON AV RUNNER RST |
|||||||||
|
1 |
COUVRE GUIDON AV RUNNER |
|||||||||
|
1 |
94944100R7 - COUVRE GUIDON AV RUNNER RST More informationQuantity required : 1 |
|||||||||
|
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> BLACK 94 -6551890090 More informationQuantity required : 1 |
|||||||||
|
1 |
655189-HANDLEBAR COVER AV * More informationQuantity required : 1 |
|||||||||
|
2 |
959347000C-COVER STEERING ARR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/7/1/img/88471.jpg)
3 |
PROTECTOR-SCREEN OEM PIAGGIO 125 CARNABI/GILERA 125 RUNNER 2016 <-654800 More informationQuantity required : 1 |
|||||||||
|
4 |
PROTECTOR-SCREEN OEM PIAGGIO 125 CARNABI/GILERA 125 RUNNER 2016 <-654800 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
5 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-581176 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/4/img/67204.jpg)
6 |
INSERT MOUNTING SAUTE VENT OEM PIAGGIO 50 NRG, TYPHOON 2005 >, 300 YOURBAN/GILERA 50 RUNNER 2005 >-581174 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/1/4/img/110214.jpg)
7 |
WASHER NYLON/PLASTIQUE EN T (D5) OEM PIAGGIO COMMON A LA RANGE-567602 More informationQuantity required : 2 |
|||||||||
