Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

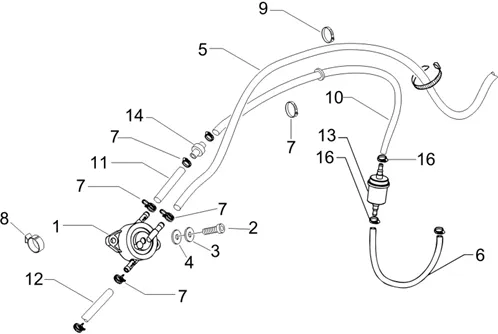

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/198/Runner_200_VXR_4T_2005-2006_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
2 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON LA RANGE-259151 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
3 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
4 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
5 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
6 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-CM006116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
7 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 4 |
||||||
8 |
CM006904-OLLIER More informationQuantity required : 1 |
||||||
|
9 |
CM017803-SPRING FOR TUBES More informationQuantity required : 1 |
||||||
|
10 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
11 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
13 |
FUEL FILTER OEM PIAGGIO 125 MP3 2007 >, X7 2008 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 > 50 FLY 4T 2005 >/GILERA 125 NEXUS 2007 >, RUNNER 2004 > 50 RUNNER PURE-JET 2005 >-270423 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
14 |
VALVE DE RETENUE CIRCUIT ALIMENTATION OEM PIAGGIO 125 MP3, X8, X-EVO, 125-250 BEVERLY, X9/GILERA 125 RUNNER 4T/APRILIA 125-250 ATLANTIC, 125 MOJITO, 1000 RSV-2-AP8104594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
16 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 2 |
