Vehicle Exploded View - GILERA RUNNER 200 ST 4T E3 2008-2011 GILERA

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL

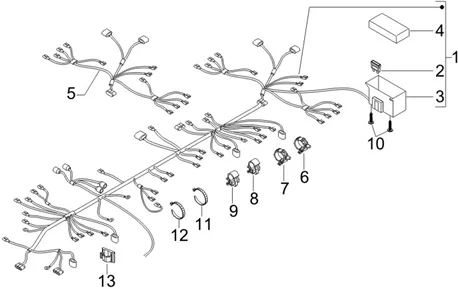

Faisceau de câbles principal
Search
642701 - FAISCEAU CABLES

1
P2R reference P2R reference 86452
Maker reference Maker reference 642701

642701-WIRING HARNESS

More information

Quantity required : 1

BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256

2
P2R reference P2R reference 66262
Maker reference Maker reference 293256

BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256

More information

Quantity required : 3

BLADE FUSE STANDARD 20A OEM PIAGGIO COMMON A TOUTE LA RANGE-580561

2
P2R reference P2R reference 110630
Maker reference Maker reference 580561

BLADE FUSE STANDARD 20A OEM PIAGGIO COMMON A TOUTE LA RANGE-580561

More information

Quantity required : 1

581190 - PORTE-FUSIBLES

3
P2R reference P2R reference 67205
Maker reference Maker reference 581190

DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-581190

More information

Quantity required : 1

581191 - COUVERCLE

4
P2R reference P2R reference 67206
Maker reference Maker reference 581191

581191-COVER

More information

Quantity required : 1

640384 - FAISCEAU CABLES

5
P2R reference P2R reference 85946
Maker reference Maker reference 640384

640384-WIRING HARNESS

More information

Quantity required : 1

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

6
P2R reference P2R reference 72907
Maker reference Maker reference CM006905

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

More information

Quantity required : 3

CM006906 - RESSORT

7
P2R reference P2R reference 72908
Maker reference Maker reference CM006906

CM006906-SPRING

More information

Quantity required : 2

PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201

8
P2R reference P2R reference 72917
Maker reference Maker reference CM013201

PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201

More information

Quantity required : 1

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

9
P2R reference P2R reference 72919
Maker reference Maker reference CM013203

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

10
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

11
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 12

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

12
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 2

CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594

13
P2R reference P2R reference 67161
Maker reference Maker reference 577594

CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594

More information

Quantity required : 1
