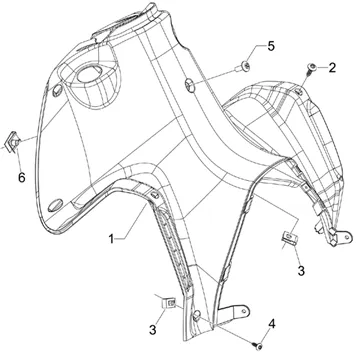

Vehicle Exploded View - GILERA RUNNER 200 ST 4T E3 2008-2011 GILERA

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
Coffre avant - Contre-tablier
Search
LEG SHIELD INNER OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949404000C

1
P2R reference P2R reference 93689
Maker reference Maker reference 949404000C

LEG SHIELD INNER OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949404000C

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 6235685

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

3
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 10

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

4
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 8

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

5
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1
