Vehicle Exploded View - GILERA RUNNER 125 VX 4T Race
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

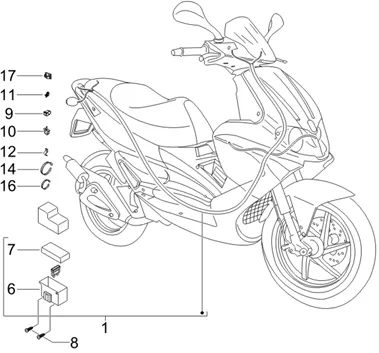

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/193/Runner_125_VX_4T_Race_06.08.PNG)
1 |
639625 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
6 |
DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-581190 More informationQuantity required : 1 |
||||||
|
7 |
581191-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
8 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
9 |
COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905 More informationQuantity required : 3 |
||||||
|
10 |
CM006906-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
11 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
12 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
14 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
16 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
17 |
CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594 More informationQuantity required : 1 |
