Vehicle Exploded View - GILERA RUNNER 125 VX 4T Race
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

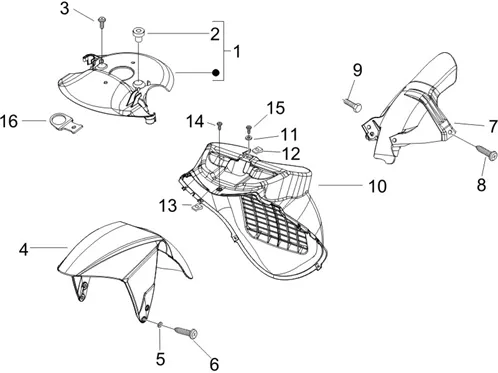

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/193/Runner_125_VX_4T_Race_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/0/8/img/90408.jpg)
1 |
PROTECTOR/FRONT MUDGUARD SOUS FORK OEM PIAGGIO 50 NRG 2005 >/GILERA 50-125 RUNNER 2005 >-668566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
2 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
3 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
4 |
FRONT MUDGUARD OEM PIAGGIO GILERA 50-125 RUNNER LATE MODEL UNPAINTED-647590 More informationQuantity required : 1 |
||||||
|
4 |
64759000EE - GARDE BOUE AV RUNNER RST More informationQuantity required : 1 |
||||||
|
4 |
64759000GP - GARDE BOUE AV RUNNER RST JAUNE 928/A More informationQuantity required : 1 |
||||||
|
4 |
64759000R7 - GARDE BOUE AV RUNNER RST More informationQuantity required : 1 |
||||||
|
5 |
259828-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/0/6/img/68206.jpg)
7 |
PROTECTOR-MUD REAR OEM PIAGGIO GILERA 125-250-300 NEXUS, 125 RUNNER-652976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
9 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 3 |
||||||
|
10 |
624425000C-LOGEMENT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
11 |
WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
14 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/1/img/69101.jpg)
15 |
SCREW CRUCIFORME (5X17) OEM PIAGGIO COMMON A LA RANGE-834065 More informationQuantity required : 1 |
||||||
|
16 |
949393-PLATE BRAKE More informationQuantity required : 1 |
