Vehicle Exploded View - GILERA RUNNER 125 VX 4T (Euro 3) GILERA

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION

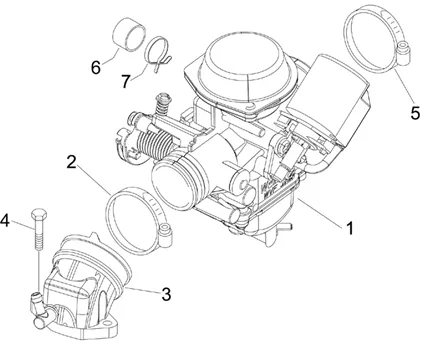

Carburateur complet - Raccord d'admission
Search
CARBURETTOR OEM PIAGGIO 125 BEVERLY 2007 > 2010, X7, CARNABY/GILERA 125 NEXUS 2007 > 2008/APRILIA 125 ATLANTIC 2006 > 2012, SPORT-CITY-CM128216

1
P2R reference P2R reference 73144
Maker reference Maker reference CM128216

CARBURETTOR OEM PIAGGIO 125 BEVERLY 2007 > 2010, X7, CARNABY/GILERA 125 NEXUS 2007 > 2008/APRILIA 125 ATLANTIC 2006 > 2012, SPORT-CITY-CM128216

More information

Quantity required : 1

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

2
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 1

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

3
P2R reference P2R reference 72712
Maker reference Maker reference B016579

FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579

More information

Quantity required : 1

FITTING/MANIFOLD INTAKE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-874415

3
P2R reference P2R reference 70525
Maker reference Maker reference 874415

FITTING/MANIFOLD INTAKE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-874415

More information

Quantity required : 1

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

4
P2R reference P2R reference 109062
Maker reference Maker reference 830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

4
P2R reference P2R reference 109062
Maker reference Maker reference 1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905

5
P2R reference P2R reference 72892
Maker reference Maker reference CM002905

HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905

More information

Quantity required : 1

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

6
P2R reference P2R reference 69200
Maker reference Maker reference 841695

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

More information

Quantity required : 1

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

7
P2R reference P2R reference 72897
Maker reference Maker reference CM002916

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

More information

Quantity required : 1
