Vehicle Exploded View - GILERA RUNNER 125 VX 4T (Euro 3) GILERA

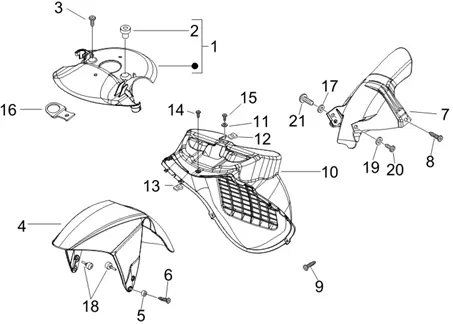

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
Logement roue - Garde boue
Search
PROTECTOR/FRONT MUDGUARD SOUS FORK OEM PIAGGIO 50 NRG 2005 >/GILERA 50-125 RUNNER 2005 >-668566

1
P2R reference P2R reference 90408
Maker reference Maker reference 668566

PROTECTOR/FRONT MUDGUARD SOUS FORK OEM PIAGGIO 50 NRG 2005 >/GILERA 50-125 RUNNER 2005 >-668566

More information

Quantity required : 1

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

2
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 2

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

3
P2R reference P2R reference 65640
Maker reference Maker reference 0310895

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

More information

Quantity required : 2

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER (new model) RAW -647590-

4
P2R reference P2R reference 68022
Maker reference Maker reference 647590

FRONT MUDGUARD OEM PIAGGIO GILERA 50-125 RUNNER LATE MODEL UNPAINTED-647590

More information

Quantity required : 1

6475900090 - GARDE BOUE AV RUNNER RST

4
P2R reference P2R reference 86716
Maker reference Maker reference 6475900090

6475900090 - GARDE BOUE AV RUNNER RST

More information

Quantity required : 1

259828 - RONDELLE

5
P2R reference P2R reference 77092
Maker reference Maker reference 259828

259828-WASHER

More information

Quantity required : 4

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

6
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 4

PARE-BOUE

7
P2R reference P2R reference
Maker reference Maker reference 624506

PARE-BOUE

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

8
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

9
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 3

624425000C - LOGEMENT ROUE

10
P2R reference P2R reference 85080
Maker reference Maker reference 624425000C

624425000C-LOGEMENT WHEEL

More information

Quantity required : 1

10
P2R reference P2R reference
Maker reference Maker reference 6244255

WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866

11
P2R reference P2R reference 65428
Maker reference Maker reference 0166865

WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

12
P2R reference P2R reference 65998
Maker reference Maker reference 248419

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

14
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

SCREW CRUCIFORME (5X17) OEM PIAGGIO COMMON A LA RANGE-834065

15
P2R reference P2R reference 69101
Maker reference Maker reference 834065

SCREW CRUCIFORME (5X17) OEM PIAGGIO COMMON A LA RANGE-834065

More information

Quantity required : 1

949393 - PLAQUE FREIN

16
P2R reference P2R reference 93685
Maker reference Maker reference 949393

949393-PLATE BRAKE

More information

Quantity required : 1

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

17
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 2

566546 - SILENTBLOC

18
P2R reference P2R reference 80166
Maker reference Maker reference 566546

566546-RUBBER MOUNT

More information

Quantity required : 2

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

19
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 2

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

20
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

21
P2R reference P2R reference 72723
Maker reference Maker reference 434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

21
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 2
