Vehicle Exploded View - APRILIA RSV4 1100 Racing Factory E4 ABS 2020 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

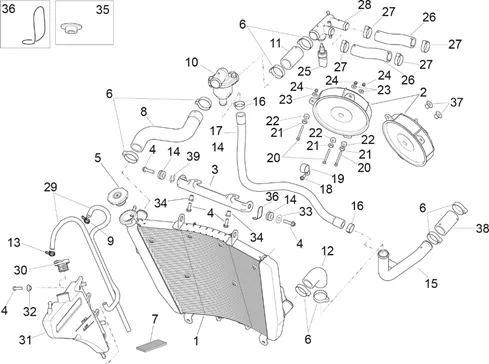

Installation refroidissement : 10.020 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/869/RSV4_1100_Racing_Factory_E4_ABS_2020_(EMEA-GSO)_10.020.png)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO-V4 -2B003834- More informationQuantity required : 1 |
||||||
|
2 |
2D000310 - ELECTRO VENTILATEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/1/9/img/42819.jpg)
3 |
BRACKET RADIATOR OEM APRILIA 1100/1000 RSV4, TUONO-2B005580 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/9/4/img/42094.jpg)
5 |
CAP DE RADIATOR OEM APRILIA 1000-1100 RSV4 2009 >-893954 More informationQuantity required : 1 |
||||||
|
6 |
CM269609-CLAMP SERR. TUBE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
7 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 2 |
||||||
|
8 |
2B002204-HOSE RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
9 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/7/0/img/40070.jpg)
10 |
THERMOSTAT OEM APRILIA 1000-1100 RSV-4, TUONO V4 2009 >-856279 More informationQuantity required : 1 |
||||||
|
11 |
2B002207-SLEEVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/3/img/49583.jpg)
12 |
HOSE COOLING THERMOSTHAT-PUMP OEM APRILIA 1000-1100 RSV2, RSV4-AP8144033 More informationQuantity required : 1 |
||||||
|
13 |
AP8102378-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
14 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
|
15 |
858488-HOSE RADIATOR More informationQuantity required : 1 |
||||||
|
16 |
CM269603-CLAMP More informationQuantity required : 1 |
||||||
|
17 |
2B002208-TUY. THERMOSTAT-MOT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
18 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
|
19 |
893224-CLAMP More informationQuantity required : 1 |
||||||
|
20 |
893514-SCREW FHC More informationQuantity required : 6 |
||||||
|
21 |
893823-WASHER More informationQuantity required : 6 |
||||||
|
22 |
893513-SPACER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
23 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
25 |
SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R More informationQuantity required : 1 |
||||||
|
26 |
2B002203-HOSE ENGINE-COLLEC. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/1/4/img/97314.jpg)
27 |
CLAMP CLIC (26X8) OEM PIAGGIO COMMON A LA RANGE-AP9100456 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/1/9/img/40119.jpg)
28 |
MANIFOLD DE COOLING OEM APRILIA 1000-1100 RSV4 2009 >-856543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
29 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/5/5/img/203755.JPG)
30 |
CAP DU VASE EXPANSION OEM APRILIA MOTO-2B010567 More informationQuantity required : 1 |
||||||
|
30 |
CAP DU VASE EXPANSION OEM APRILIA MOTO-2B010567 More informationQuantity required : 1 |
||||||
|
31 |
858908-VASE D'EXPANSION More informationQuantity required : 1 |
||||||
|
32 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
33 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
34 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
35 |
WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/9/img/72299.JPG)
36 |
GUIDE CABLE OEM PIAGGIO/APRILIA COMMON A LA RANGE-AP8221150 More informationQuantity required : 1 |
||||||
|
37 |
895450-BUSH FILETEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/4/5/img/49845.jpg)
38 |
SLEEVE HOSE COOLING OEM APRILIA 1000-1100 RSV-AP8144720 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
39 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 1 |
